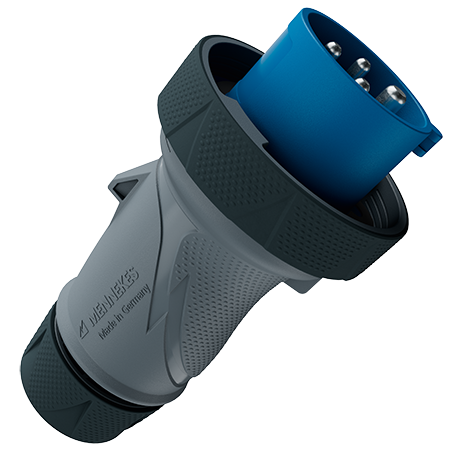

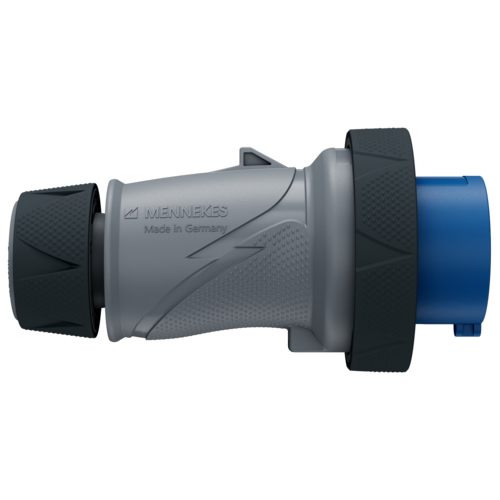

Plug PowerTOP Xtra R with ErgoCONTACT 13636
Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The plugs in the PowerTOP Xtra family comply with protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high-pressure cleaning.
Voltage
Clock position
- screw connection technology ErgoCONTACT
- ergonomic enclosure design with nubbed grip zones
- highly heat resistant contact carrier
- nickel plated contacts
- rubberised cable gland with sealing
- rubberised bayonet ring
- sealed against dust, temporary submersion and high pressure cleaning
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Plug PowerTOP Xtra R with ErgoCONTACT 13636
| Ampere | 16 A |
|---|---|
| Poles | 4 p |
| Voltage | 230 V |
| Clock position | 9 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP67 / IP69 |
| Weight | 240 g |
| Certifications | VDE |
