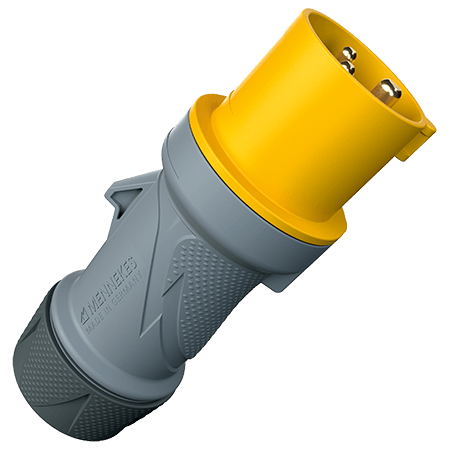

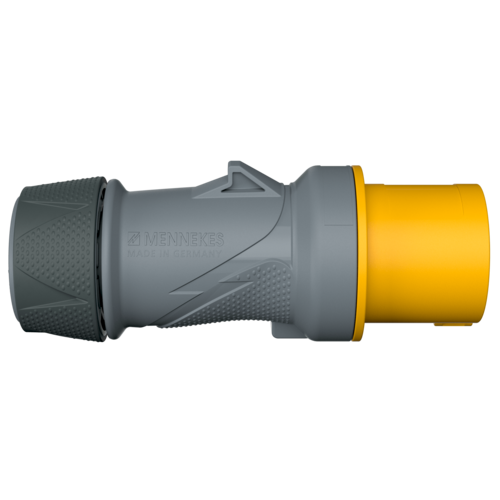

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13512
MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13512 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra with ErgoCONTACT 13512

Across all versions and applications, PowerTOP Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13512
  • EAN4015394304876
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP Xtra with ErgoCONTACT 13512

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact standard
Protection type IP54
Weight 323 g
Certifications VDE
CB Zertifikat

Videos

Plug PowerTOP Xtra with ErgoCONTACT 13512

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP Xtra with ErgoCONTACT 13512

Appropriate products

Plug PowerTOP Xtra with ErgoCONTACT 13512 with IP54

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14512

Connector PowerTOP Xtra with ErgoCONTACT

Part no. 14512

  • Protection type: IP54
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals, ErgoCONTACT
MENNEKES Panel mounted receptacle 1491

Panel mounted receptacle

Part no. 1491

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals

Appropriate accessories

Plug PowerTOP Xtra with ErgoCONTACT 13512

MENNEKES Set cable gland PowerTOP Xtra G 42932

Set cable gland PowerTOP Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 32 A
