MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13628

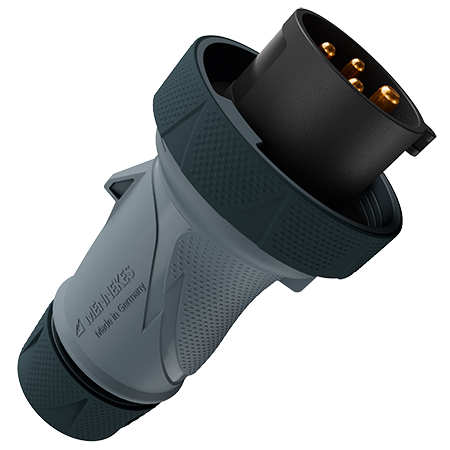

Plug PowerTOP Xtra with ErgoCONTACT 13628

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The...Read more
Ampere 16 A 32 A
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13628
  • EAN4015394309178
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

Technical specifications

Plug PowerTOP Xtra with ErgoCONTACT 13628

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact standard
Protection type IP67 / IP69
Weight 390 g

Datasheets & Downloads

Plug PowerTOP Xtra with ErgoCONTACT 13628

Product infoPlug PowerTOP Xtra with ErgoCONTACT 13628 PDF, 1 MB
CAD data STPPlug PowerTOP Xtra with ErgoCONTACT 13628 ZIP, 9 MB
CAD data 3D DWGPlug PowerTOP Xtra with ErgoCONTACT 13628 ZIP, 7 MB
Mounting instructionsPlug PowerTOP Xtra with ErgoCONTACT 13628 PDF, 2 MB
Dimensional drawing portraitPlug PowerTOP Xtra with ErgoCONTACT 13628 PNG, 160 KB
Dimensional drawing landscape formatPlug PowerTOP Xtra with ErgoCONTACT 13628 PNG, 346 KB

Videos

Plug PowerTOP Xtra with ErgoCONTACT 13628

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP Xtra with ErgoCONTACT 13628

REACh
RoHS

Appropriate products

Plug PowerTOP Xtra with ErgoCONTACT 13628 with IP67 / IP69

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14628

Connector PowerTOP Xtra with ErgoCONTACT

Part no. 14628

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 500 V
  • Connection technology: Screw terminals, ErgoCONTACT
more
MENNEKES Wall mounted receptacle DUO 5604407G

Wall mounted receptacle DUO

Part no. 5604407G

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 500 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug PowerTOP Xtra with ErgoCONTACT 13628

MENNEKES Set cable gland PowerTOP Xtra G 42932

Set cable gland PowerTOP Xtra G

Part no. 42932

rubberised cable gland, with protective grommet to prevent dirt from accumulating, suitable for PowerTOP Xtra plugs and connetcor in 32 A

more
