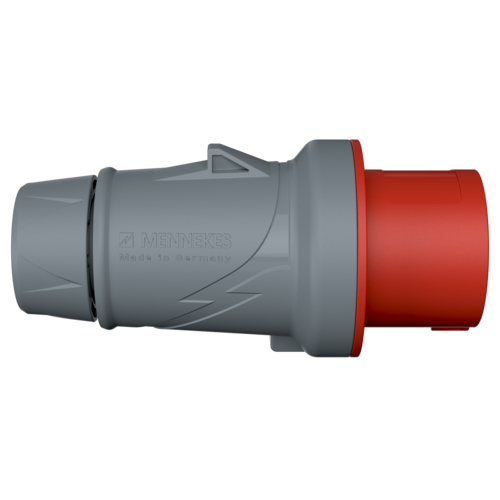

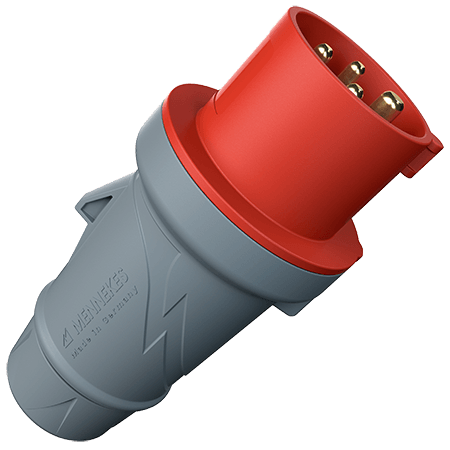

MENNEKES Plug PowerTOP® Plus 3206
MENNEKES Plug PowerTOP® Plus 3206 images3d

Plug PowerTOP® Plus 3206

Poles
Voltage
Clock position
  • screw terminals ErgoCONTACT
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.3206
  • EAN4015394296485
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP® Plus 3206

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact standard
Protection type IP44
Weight 183 g
Certifications VDE
CQC

Directives

Plug PowerTOP® Plus 3206
