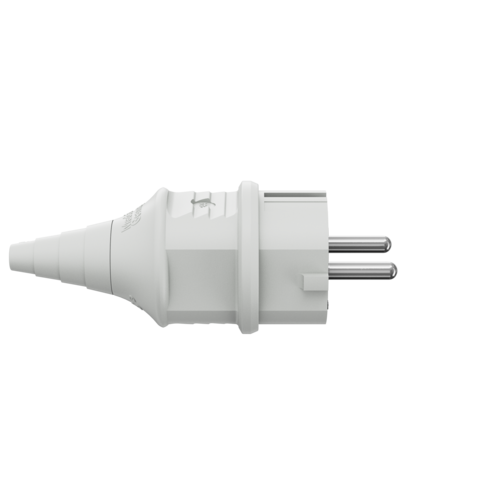

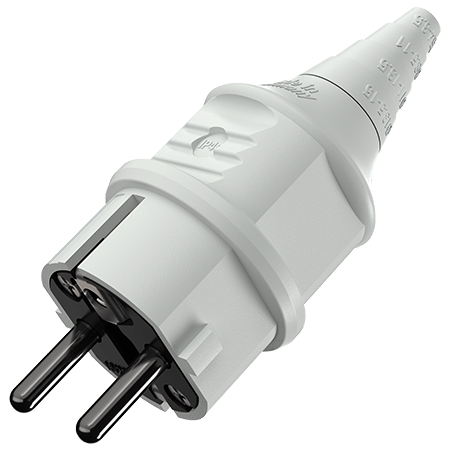

Plug SCHUKO® 10749

Ampere 16 A
Poles
Voltage
  • screw terminals
  • with combined PE-conductor acc. to german and french-belgian standard
  • with grommet
  • for cables up to 3 x 2.5 mm², up to H07RN-F
  • Part no.10749
  • EAN4015394034780
  • Std. Pack. 20 Qty.

Technical specifications

Plug SCHUKO® 10749

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 44
Shutter No
Weight 49 g
Declaration of Conformity DE,VDE
AT,ÖVE
