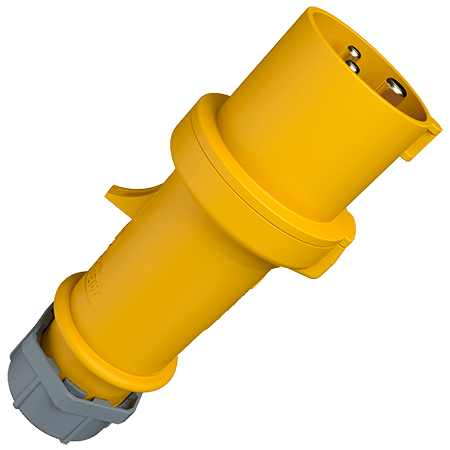

Plug StarTOP® with SafeCONTACT 947

Poles
Voltage
Clock position
  • screwless, with insulating displacing technique
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.947
  • EAN4015394195344
  • Std. Pack. 10 Qty.

Technical specifications

Plug StarTOP® with SafeCONTACT 947

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screwless - SafeCONTACT
Contact standard
Protection type IP 44
Weight 151 g
Declaration of Conformity DE,VDE
CN,CQC

Mounting instruction video

Video mounting instructions

Appropriate accessories

Plug StarTOP® with SafeCONTACT 947

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more
