MENNEKES worldwide

MENNEKES

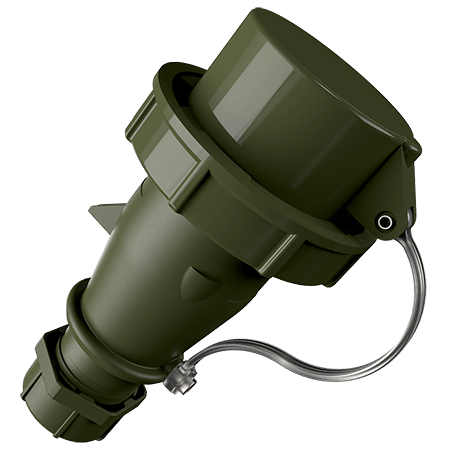

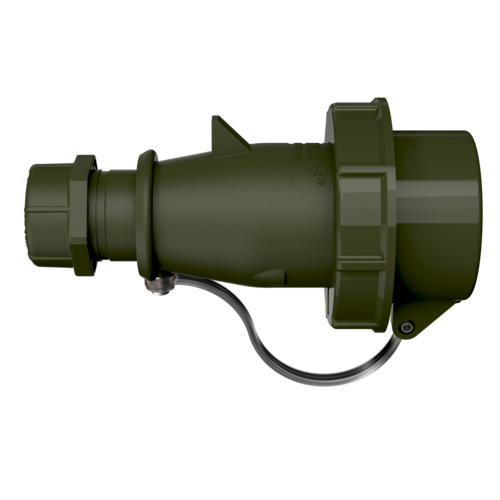

Plug TM 24772

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • (form CP)
  • Part no.24772
  • EAN4015394260745
  • Std. Pack. 10 Qty.

Technical specifications

Plug TM 24772

Ampere 32 A
Poles 5 p
Voltage 440-460 V
Clock position 11 h
Hertz 60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Weight 423 g
Declaration of Conformity DE,VDE
