MENNEKES

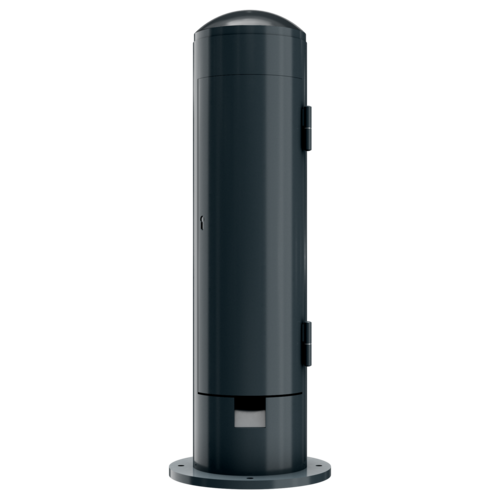

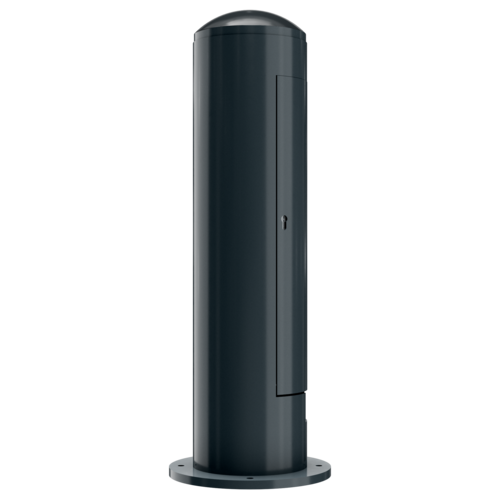

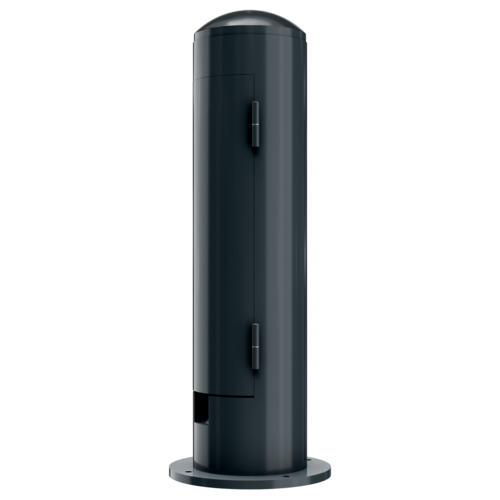

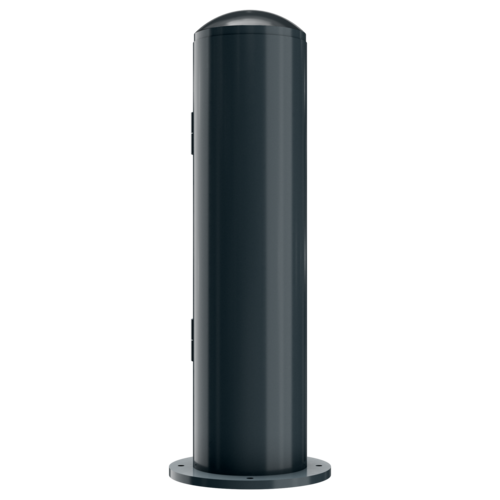

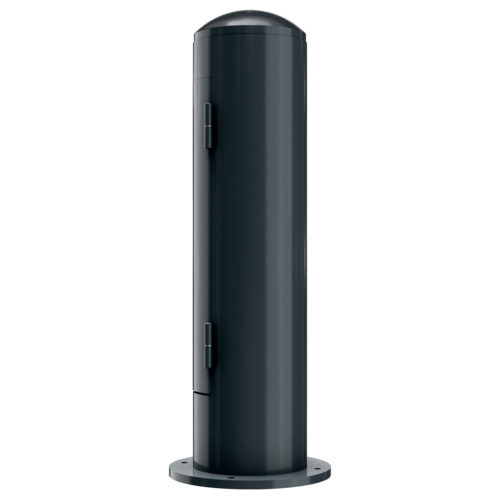

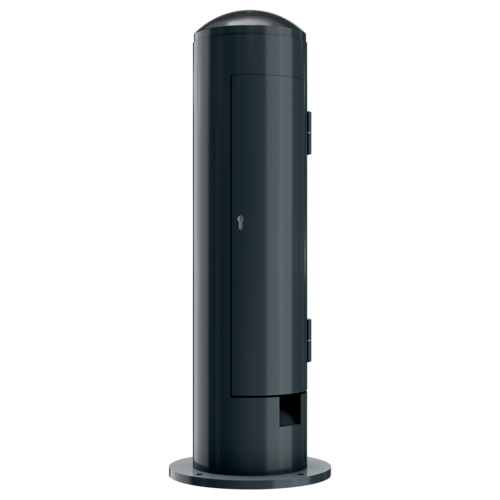

Power post 83685

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • from steel tube
  • wall thickness 4.5 mm
  • electro galvanised
  • yellow chromated
  • powder-coated
  • colour: anthracite (RAL 7016)
  • hinged supply aperture
  • with safety lock
  • dimensions (H x Ø): 1050 x 273 mm (inside)
  • weight: approx. 60 kg
  • aperture at bottom: (H x W) 60 x 70 mm
  • fixing flange: Ø 390 mm
  • with 4 fixing holes 15.5 mm
  • for fixing to an existing fundament
  • Part no.83685
  • EAN4015394226383
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Power post 83685

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 40 A
InA 38 A
RDF 0.6
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP 44
Enclosure material Metal
Weight 60000 g
Height 1050 mm
Diameter 273 mm
Declaration of Conformity EAC
Storage receptacle combination D

Frequently asked questions about the product

In which colours are energy bollards available from MENNEKES?

Our energy bollards are available in all RAL colours.
