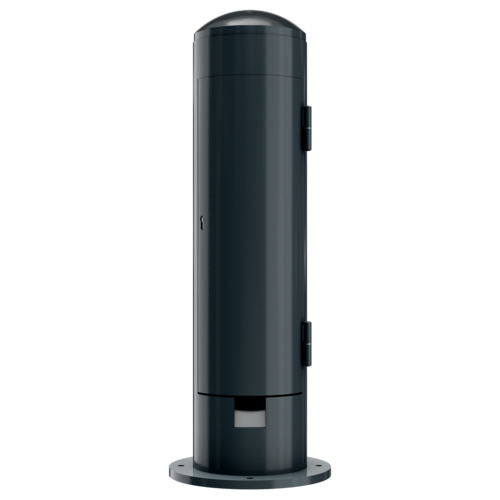

Power post enclosure 18503AG

  • from steel tube
  • wall thickness 4.5 mm
  • electro galvanised
  • yellow chromated and powder-coated
  • colour: anthracite (RAL 7016)
  • hinged supply aperture with safety lock

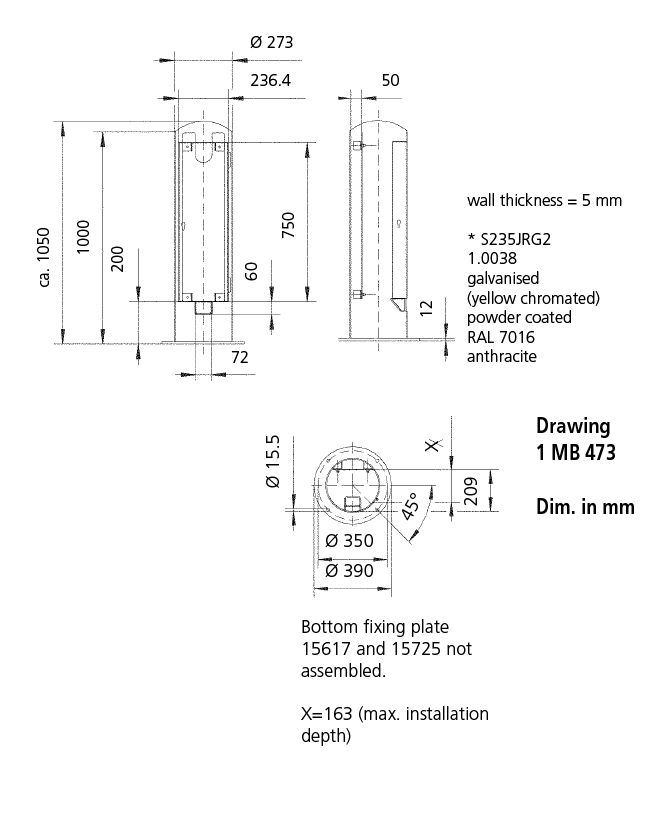

  • dimensions (H x Ø): 1050 x 273 mm (inside)
  • weight: approx. 60 kg
  • aperture at bottom: (H x W) 60 x 70 mm
  • fixing flange: Ø 390 mm
  • with 4 fixing holes 15.5 mm
  • for fixing to an existing fundament
  • Part no.18503AG
  • EAN4015394209720
  • Std. Pack. 1 Qty.

Technical specifications

Power post enclosure 18503AG

Appropriate accessories

Power post enclosure 18503AG

Mounting plate

Part no. 15617

for power post 83685 and power post enclosure 18503AG
