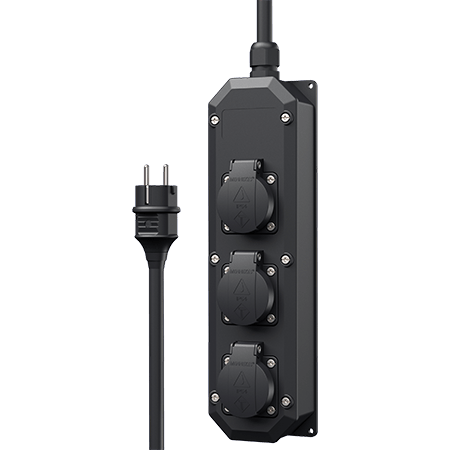

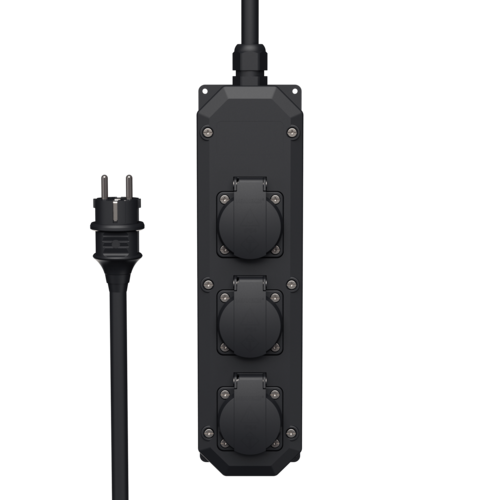

MENNEKES Receptacle combination 9200048
MENNEKES Receptacle combination 9200048 images3d

Receptacle combination 9200048

SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • with hanging clip
  • with cable grip
  • cable entry: 1 x M 20 plugged at the top, 1 x M 20 with gland at the bottom, with 1 m of feeder cable H07RN-F3G1.5
  • with plug SCHUKO®
  • Part no.9200048
  • EAN4015394262046
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Receptacle combination 9200048

SCHUKO® 16 A, 230 V 3
Pre-fuse max. 16 A
InA 16 A
RDF 1
Connection/feeder cable
  • 1 m H07RN-F3G1.5 with plug SCHUKO® 16 A, 230 V
Protection type IP44
Enclosure material Plastic
Weight 688 g
Height 330 mm
Width 80 mm
Certifications EAC
Storage receptacle combination D

Directives

Receptacle combination 9200048
