MENNEKES

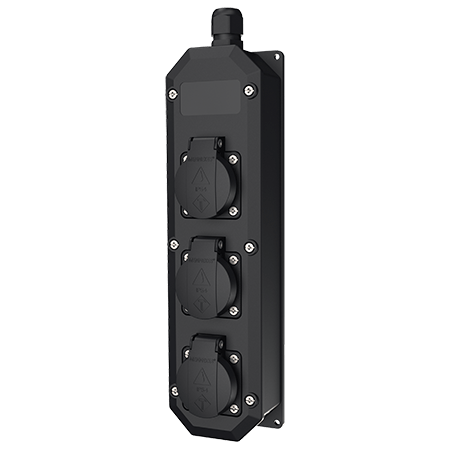

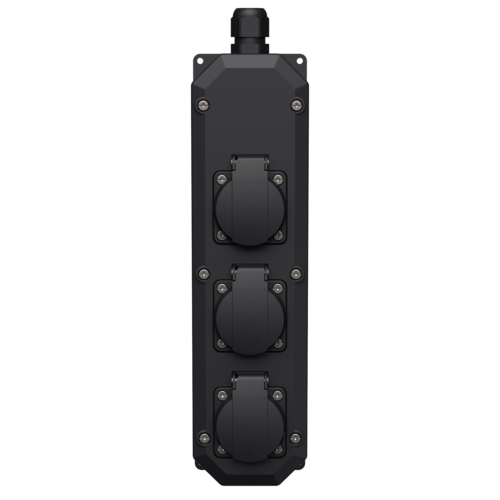

MENNEKES Receptacle strip 9203230
MENNEKES Receptacle strip 9203230 images3d

Receptacle strip 9203230

SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • with hanging clip
  • with cable grip
  • cable entry: 1 x M 20 plugged at the top, 1 x M 20 with gland at the bottom
  • without feeder cable
  • Part no.9203230
  • EAN4015394262039
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Receptacle strip 9203230

SCHUKO® 16 A, 230 V 3
Connection/feeder cable
  • for 1 cable up to 3 x 6 mm²
Protection type IP44
Maximum current load 63 A permissible total current
Enclosure material Plastic
Weight 520 g
Height 330 mm
Width 80 mm
Certifications EAC
Storage receptacle combination D

Directives

Receptacle strip 9203230
