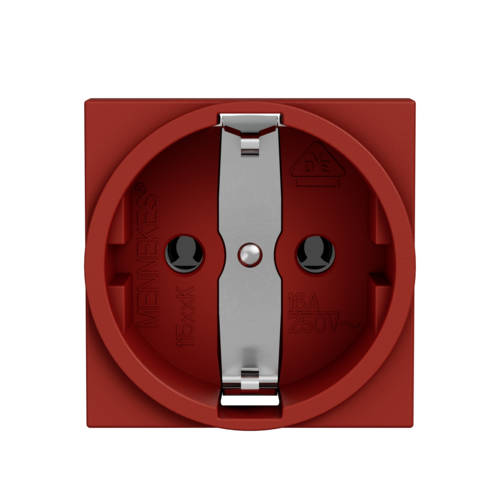

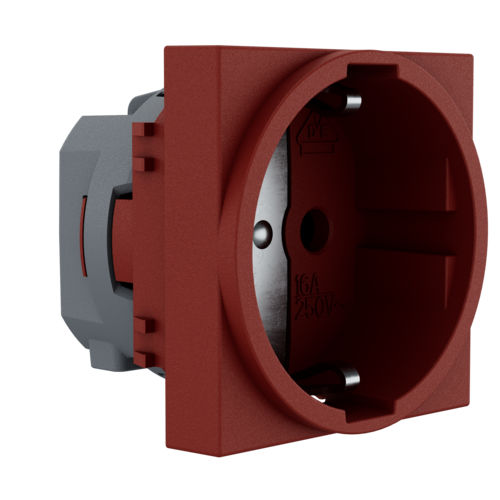

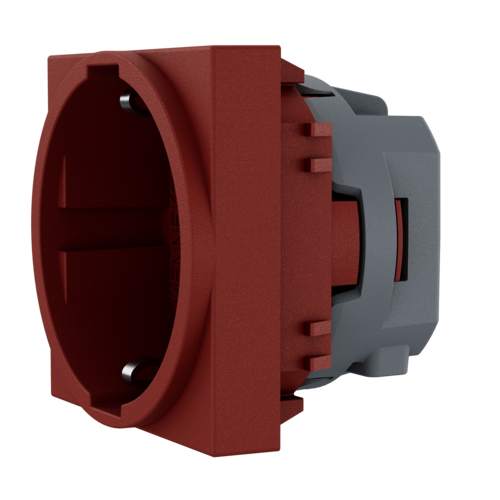

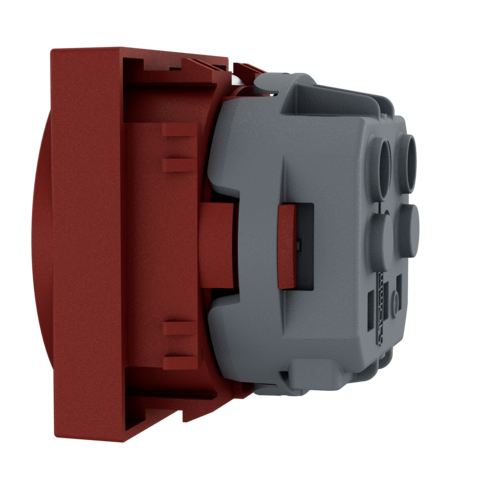

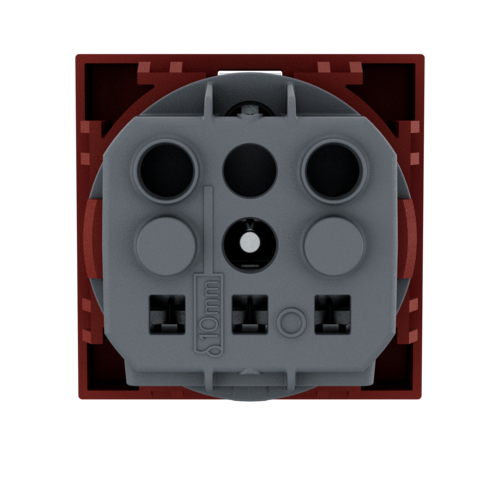

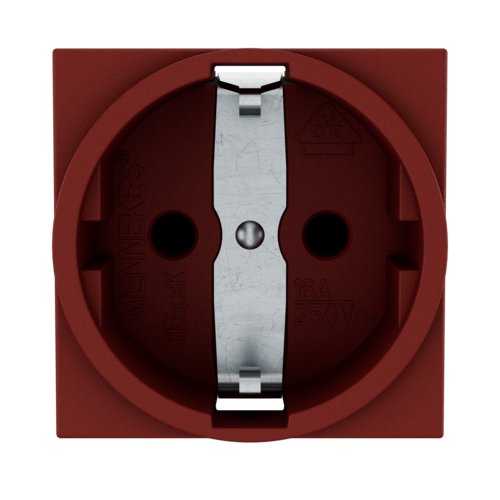

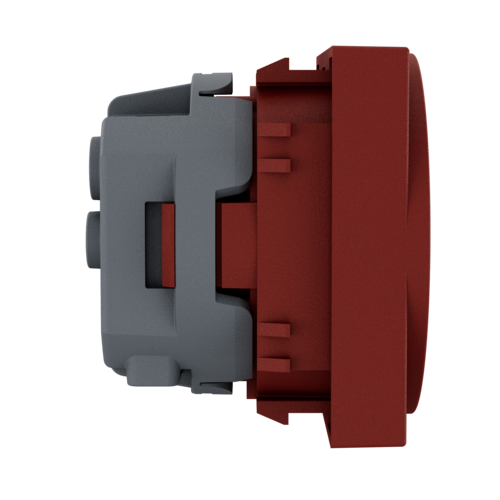

Snap-in receptacle SCHUKO® 11513K

Ampere 16 A
Poles
Voltage
  • without hinged lid
  • with 3 plug-in terminals for connection of 1.5 – 2.5 mm²
  • for easy installation in a cable duct or an enclosure
  • for fixing on DIN rail with fixing rack 11254
  • Part no.11513K
  • EAN4015394200550
  • Std. Pack. 100 Qty.

Technical specifications

Snap-in receptacle SCHUKO® 11513K

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP 20
Shutter No
Flange 45x45 mm
Weight 32 g
Declaration of Conformity DE,VDE

Appropriate accessories

Snap-in receptacle SCHUKO® 11513K

Fixing rack

Part no. 11254

for fixing of snap-in receptacles on DIN rails

more
