MENNEKES Stainless steel receptacle combination 83698
MENNEKES Stainless steel receptacle combination 83698 images3d

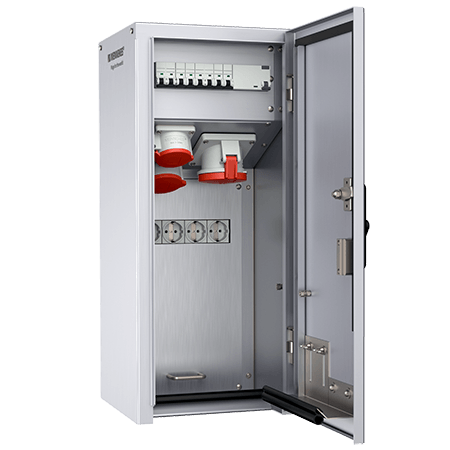

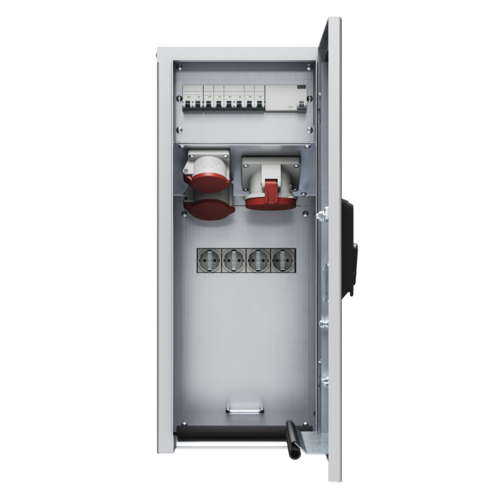

Stainless steel receptacle combination 83698

CEE 63 A, 5 p, 400 V
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • stainless steel enclosure (material 1.4301)
  • surface with a flat finish (K240), material 1.4571 on request
  • protection type IP 44 with closed door
  • Part no.83698
  • EAN4015394209218
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Stainless steel receptacle combination 83698

CEE 63 A, 5 p, 400 V 1
CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 63 A
InA 63 A
RDF 0.35
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP43
Enclosure material Metal
Weight 27000 g
Height 700 mm
Width 300 mm
Depth 310 mm
Certifications EAC
Storage receptacle combination D

Directives

Stainless steel receptacle combination 83698

Appropriate accessories

Stainless steel receptacle combination 83698

MENNEKES Weather shield 18438

Weather shield

Part no. 18438

flat finished stainless steel (K240), for enclosure size 700 x 300 x 310 mm
