MENNEKES

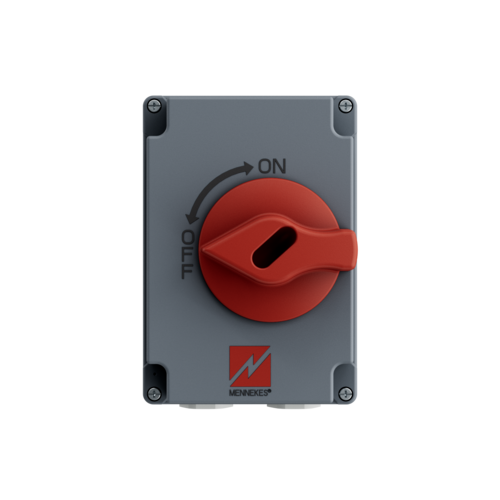

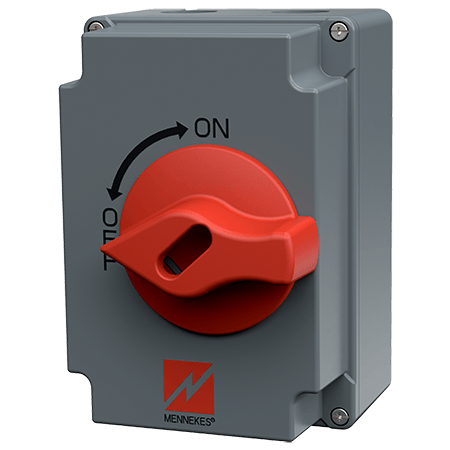

Switch disconnector 52242

Ampere 25 A
Poles
  • rigid enclosures with ample space for wiring
  • lockable with a padlock in the OFF-position
  • excellent switching capacity
  • disconnecting property in accordance with IEC 60947-3 (up to 690V)
  • finger protection in accordance with DIN 57106 / VDE 0106 T.100
  • open terminals and captive terminal screws
  • option for additional contacts
  • Part no.52242
  • EAN4015394209157
  • Std. Pack. 6 Qty.

Technical specifications

Switch disconnector 52242

Ampere 25 A
Poles 3 p
BS Motor rating AC3/440V = 7,5 kW
Weight 680 g
