MENNEKES Wall mounted Cepex double receptacle 4235
MENNEKES Wall mounted Cepex double receptacle 4235 images3d

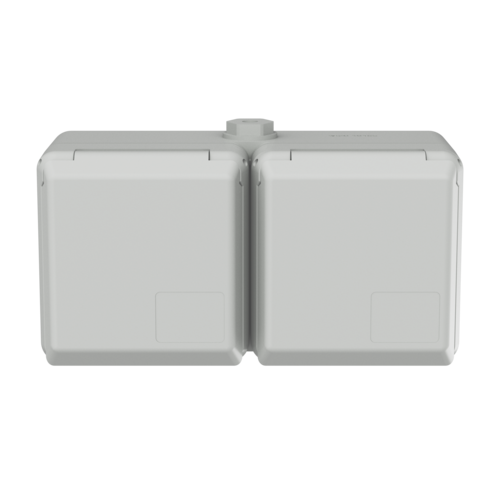

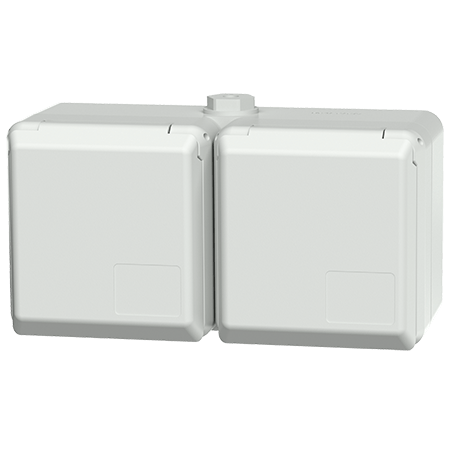

Wall mounted Cepex double receptacle 4235

Ampere 16 A
Poles
Voltage
  • screw terminals
  • meeting DIN 18032 standards for ball rebound
  • further variants on request
  • Part no.4235
  • EAN4015394022831
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted Cepex double receptacle 4235

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 422 g
Certifications EAC

Directives

Wall mounted Cepex double receptacle 4235

Appropriate accessories

Wall mounted Cepex double receptacle 4235

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)
