MENNEKES

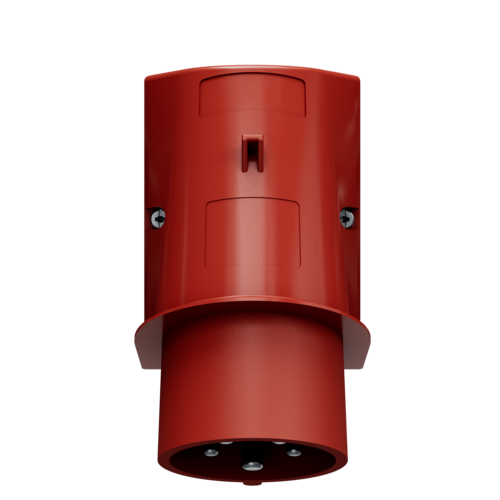

Wall mounted Inlet 21369

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable entry also possible on the back side
  • enclosure base with stamped recess for quick cutting out
  • Part no.21369
  • EAN4015394040477
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted Inlet 21369

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 44
Weight 365 g
Declaration of Conformity DE,VDE
CN,CQC
