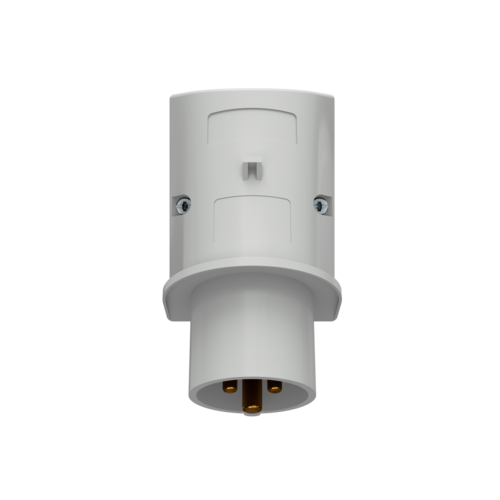

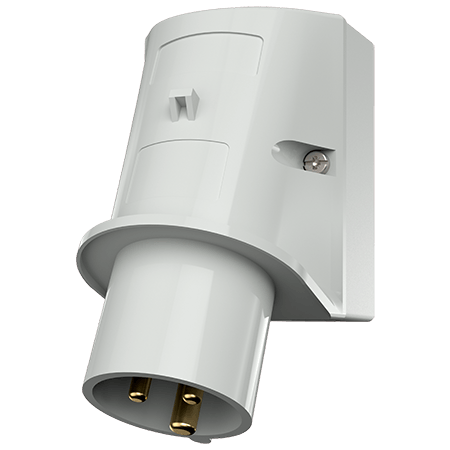

Wall mounted inlet 3230

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • Part no.3230
  • EAN4015394018346
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted inlet 3230

Ampere 16 A
Poles 3 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 150 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Wall mounted inlet 3230

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
