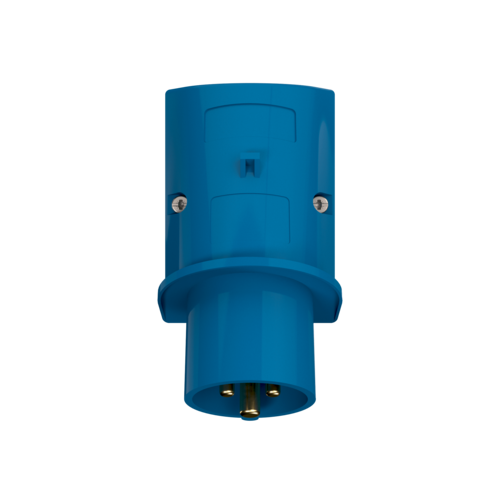

Wall mounted inlet 344

Poles
Voltage
Clock position
  • screw terminals
  • cable entry also possible on the back side
  • enclosure base with stamped recess for quick cutting out
  • Part no.344
  • EAN4015394002482
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted inlet 344

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 350 g
Declaration of Conformity DE,VDE
AT,ÖVE
CN,CQC

Appropriate accessories

Wall mounted inlet 344

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
