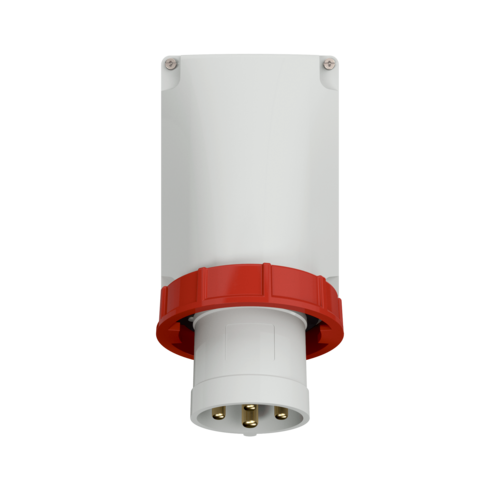

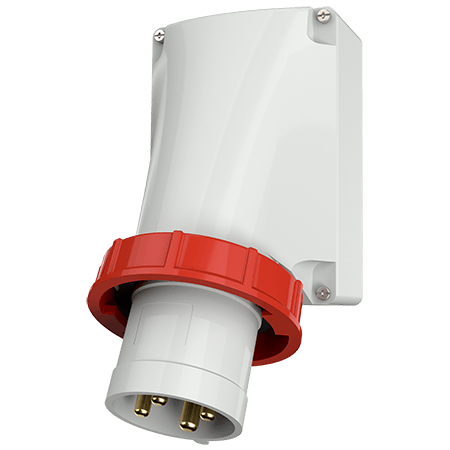

Wall mounted inlet 357

Poles
Voltage
Clock position
  • screw terminals
  • for a suitable watertight protective cover see part no. 40434
  • Part no.357
  • EAN4015394002598
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted inlet 357

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 884 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Wall mounted inlet 357

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets

more
