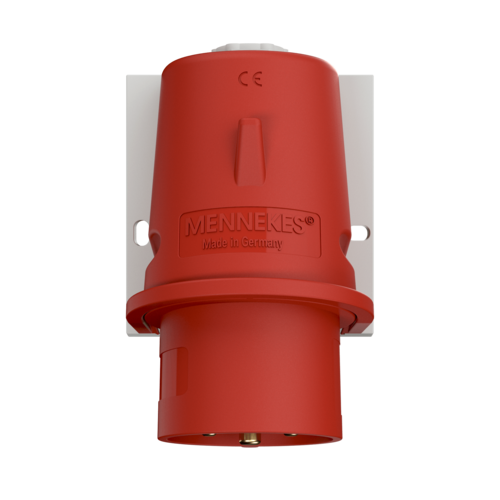

Wall mounted inlet 801

Poles
Voltage
Clock position
  • screw terminals
  • for external fixing
  • for hinged lids for retrofitting see accessories
  • Part no.801
  • EAN4015394202417
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted inlet 801

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 215 g
Declaration of Conformity DE,VDE

Appropriate accessories

Wall mounted inlet 801

Hinged lid

Part no. 41489

suitable for wall mounted inlets and phase inverters Part no. 843, 844 800, 801, 3517

more

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more
