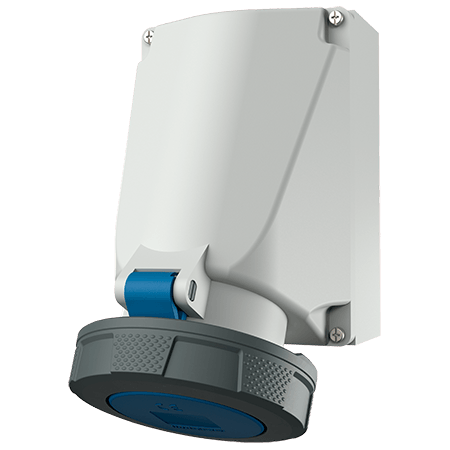

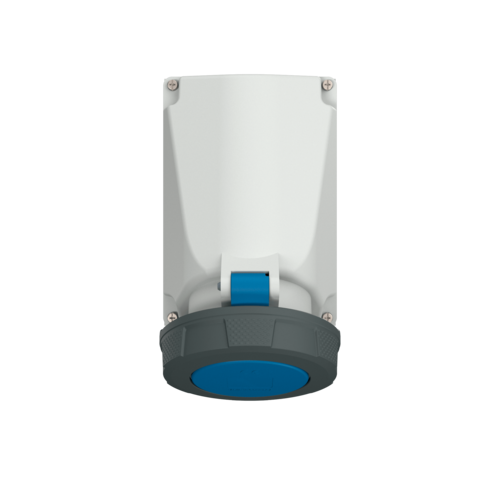

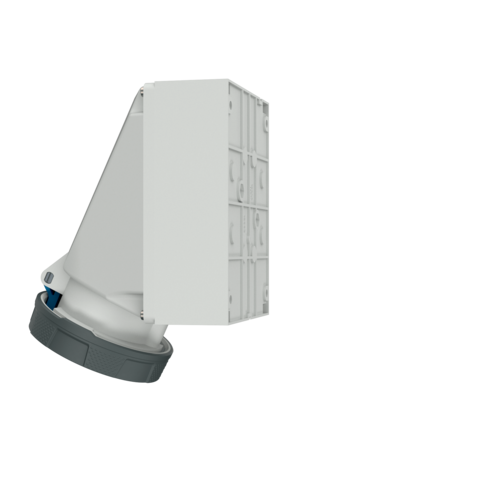

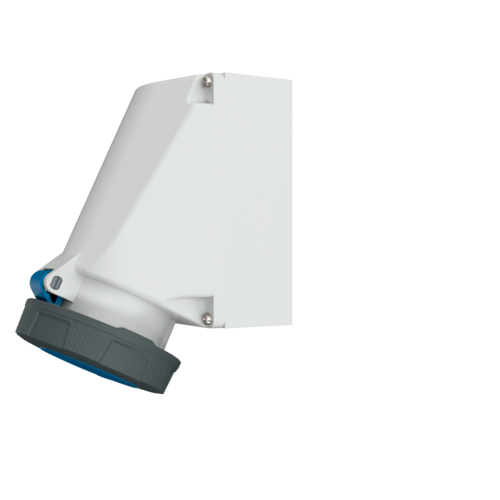

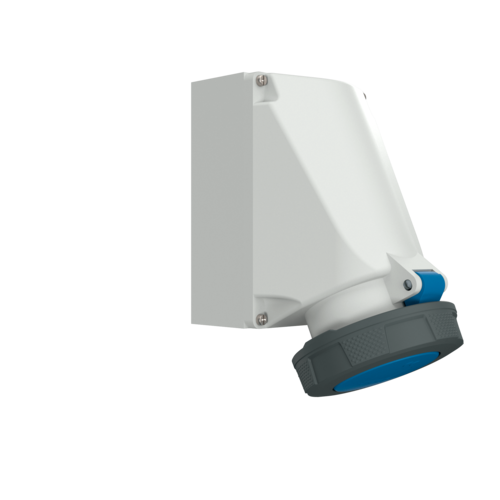

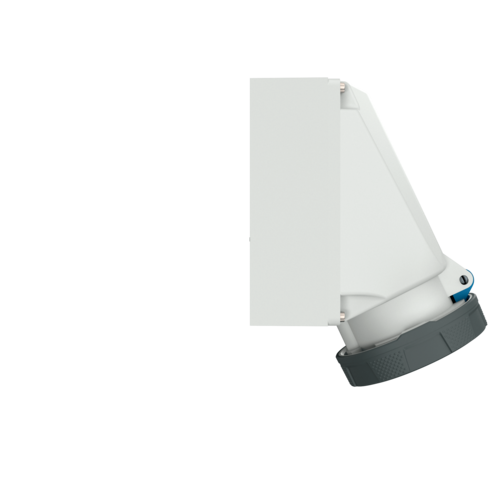

Wall mounted receptacle 131A

Ampere 63 A
Poles
Voltage
Clock position

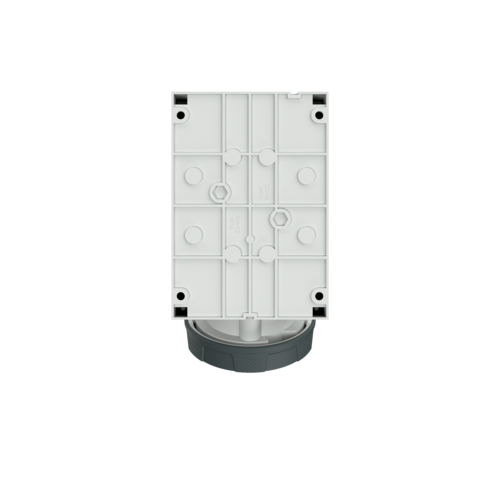

  • enclosure base can be turned 180°
  • with 6 fixing points to accommodate special terminals
  • products with pilot contact on request
  • Part no.131A
  • EAN4015394000563
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 131A

Ampere 63 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Weight 941 g
Declaration of Conformity VDE
EAC
CQC
