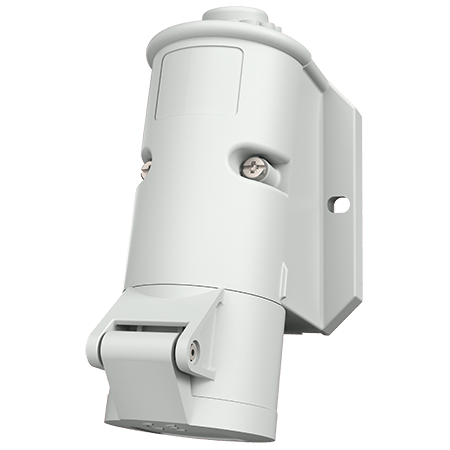

Wall mounted receptacle 1837

Poles
Voltage
Clock position
  • screw terminals
  • external fixing

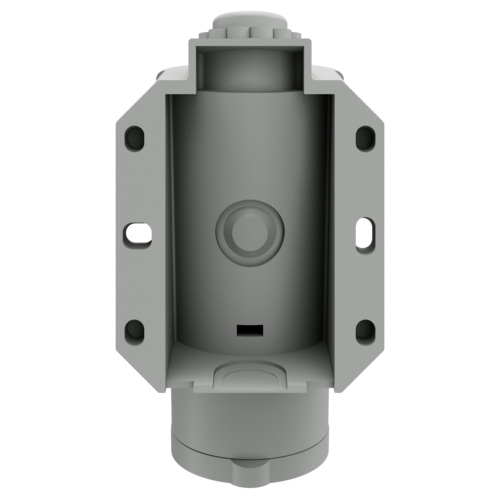

  • one cable entry at top and one blind cable entry (can be cut out) at the rear side
  • Part no.1837
  • EAN4015394012719
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted receptacle 1837

Ampere 16 A
Poles 3 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 209 g
Declaration of Conformity CN,CQC

Appropriate accessories

Wall mounted receptacle 1837

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
