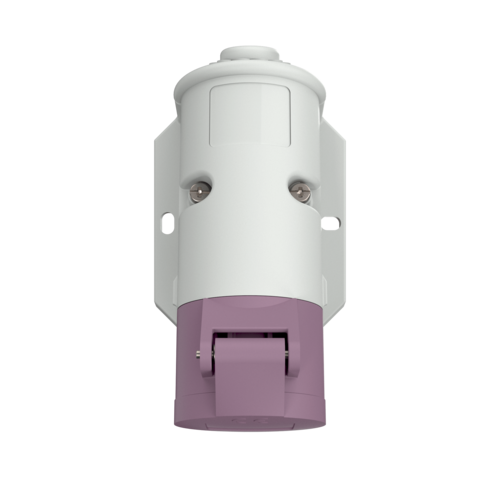

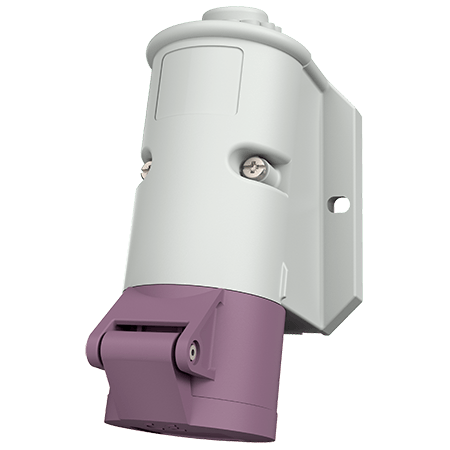

Wall mounted receptacle 1838

Poles
Voltage
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the rear side
  • Part no.1838
  • EAN4015394012726
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted receptacle 1838

Ampere 32 A
Poles 2 p
Voltage 20-25 V
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 189 g

Appropriate accessories

Wall mounted receptacle 1838

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more
