MENNEKES worldwide

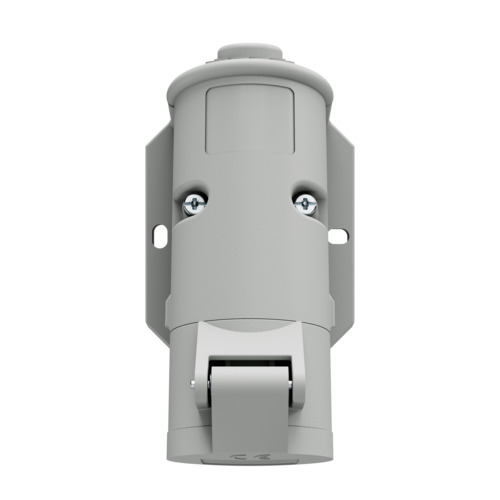

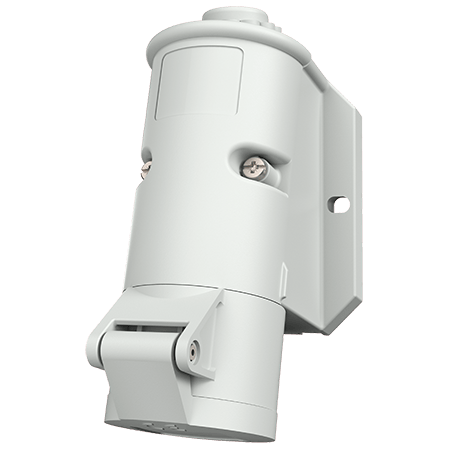

Wall mounted receptacle 1842

Clock position
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the rear side
  • Part no.1842
  • EAN4015394012740
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted receptacle 1842

Ampere 32 A
Poles 2 p
Voltage 50 V
Clock position 10 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 189 g
Declaration of Conformity CN,CQC

Appropriate accessories

Wall mounted receptacle 1842

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
