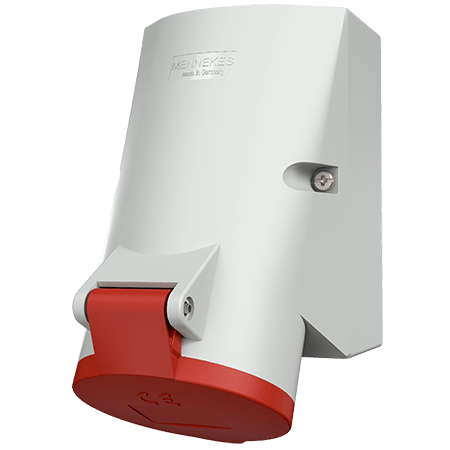

MENNEKES Wall mounted receptacle 20162A
MENNEKES Wall mounted receptacle 20162A images3d

Wall mounted receptacle 20162A

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • internal fixing
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.20162A
  • EAN4015394038276
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 20162A

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 424 g
Certifications EAC

Directives

Wall mounted receptacle 20162A

Appropriate accessories

Wall mounted receptacle 20162A

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
