MENNEKES worldwide

MENNEKES

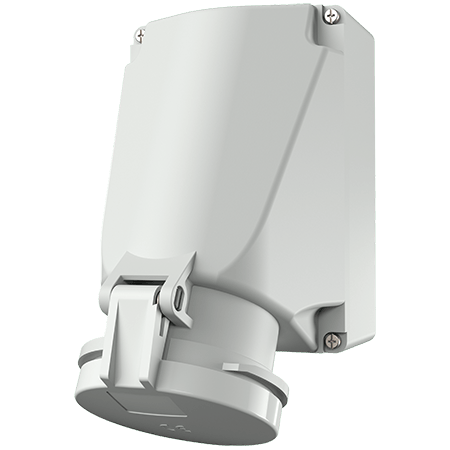

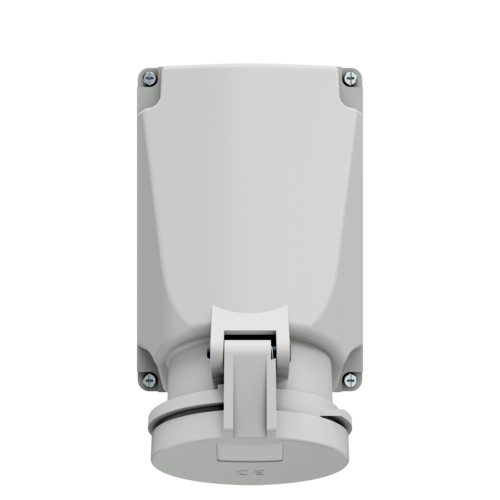

Wall mounted receptacle 3719

Ampere 63 A
Poles
Voltage
Clock position
  • one cable entry at top and two blind entries (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • Part no.3719
  • EAN4015394021162
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 3719

Ampere 63 A
Poles 5 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 44
Weight 925 g
Declaration of Conformity VDE
EAC
CQC
