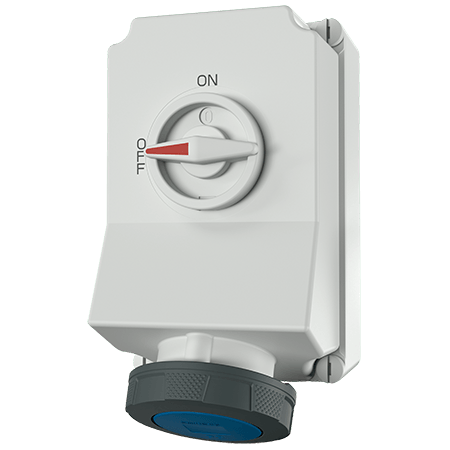

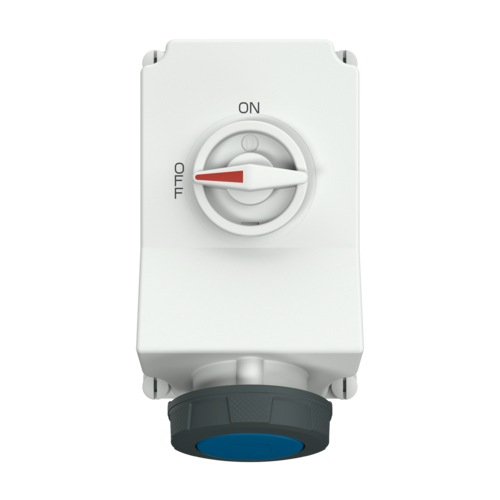

MENNEKES Wall mounted receptacle 5109A
MENNEKES Wall mounted receptacle 5109A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 5109A

Ampere 63 A
Poles
Voltage
Clock position
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.5109A
  • EAN4015394025016
  • Std. Pack. 3
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5109A

Ampere 63 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic
Weight 2382 g
Declaration of Conformity EAC
CQC

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
