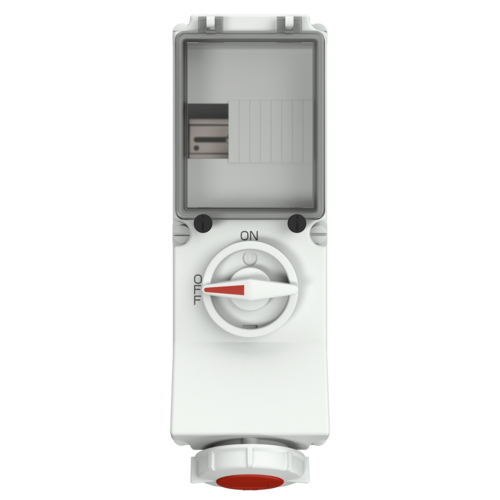

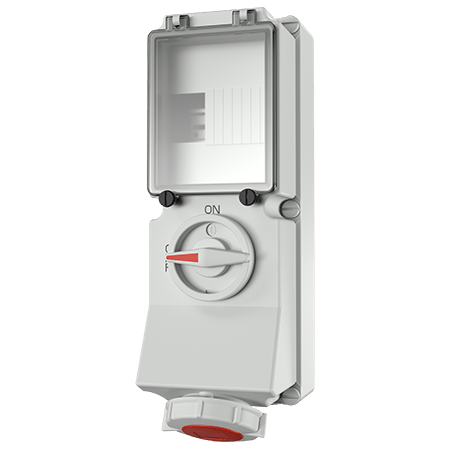

MENNEKES Wall mounted receptacle 5630A
MENNEKES Wall mounted receptacle 5630A images3d

Wall mounted receptacle 5630A

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • DIN rail
  • receptacles can be padlocked
  • Part no.5630A
  • EAN4015394028499
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5630A

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 1898 g
Certifications EAC
CQC

Directives

Wall mounted receptacle 5630A

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
