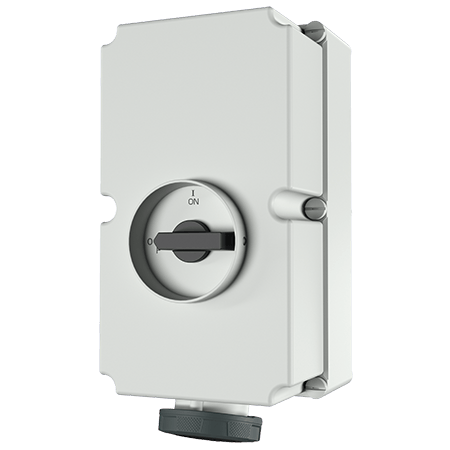

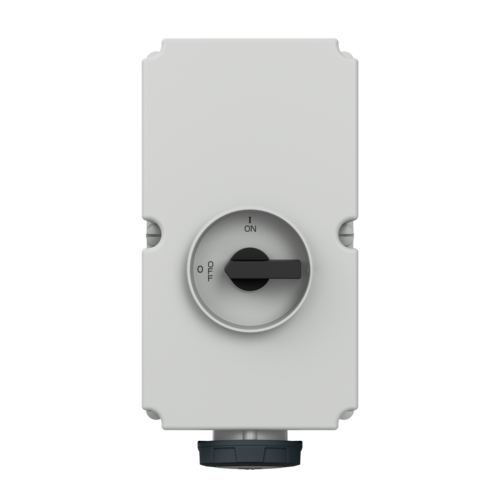

MENNEKES Wall mounted receptacle 5693A
MENNEKES Wall mounted receptacle 5693A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 5693A

Ampere 125 A
Poles
Voltage
Clock position
  • mechanical DUO-interlock
  • 3 pole fuse socket NH 00
  • upon request with provision for an additional padlock
  • Part no.5693A
  • EAN4015394029496
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5693A

Ampere 125 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic
Weight 7980 g
Certifications EAC

Videos

Wall mounted receptacle 5693A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted receptacle 5693A

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
