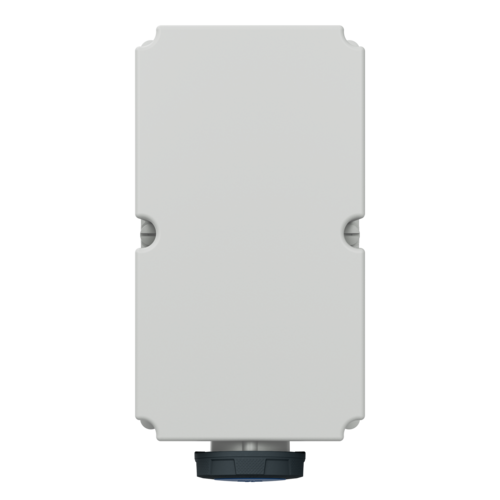

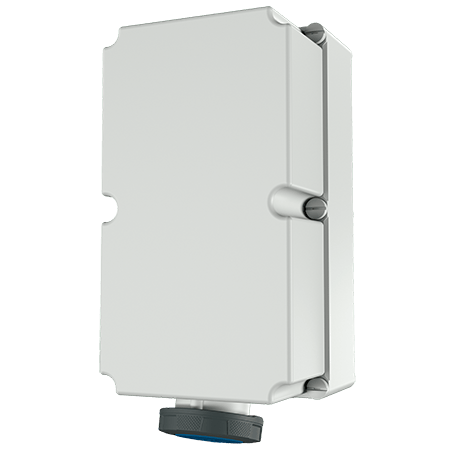

Wall mounted receptacle 7027

Please accept marketing-cookies to watch this video.

Video varieties
Ampere 125 A
Poles
Voltage
Clock position
  • contactor and electrical PCS interlock
  • Part no.7027
  • EAN4015394032717
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7027

Ampere 125 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Enclosure material Plastic
Weight 8500 g
Declaration of Conformity EAC

Frequently asked questions about the product

What does PCS mean?

PCS stands for Pilot Contact Switch. This is a switch inside the socket that is operated by inserting and pulling out the plug. The switch can be used with additional components to allow electrical interlocking of the sockets.

To the questions and answers
