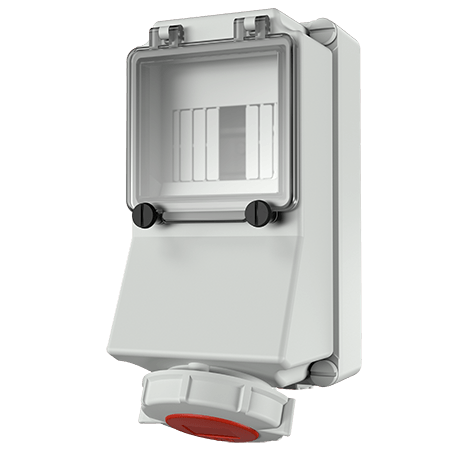

Wall mounted receptacle 7132

Poles
Voltage
Clock position
  • screw terminals
  • with DIN rail, optional fitting of Neozed, Diazed, circuit-breakers and RCD´s
  • Part no.7132
  • EAN4015394100645
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 7132

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 1115 g
