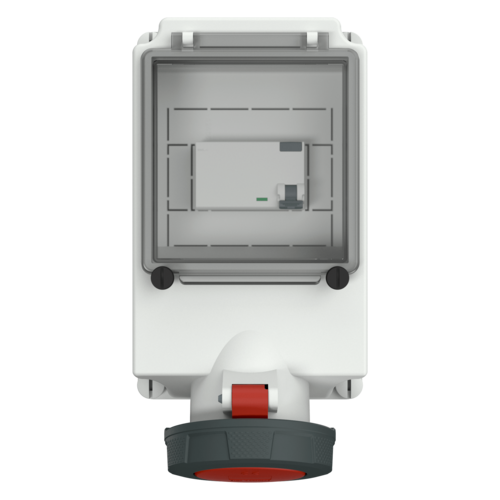

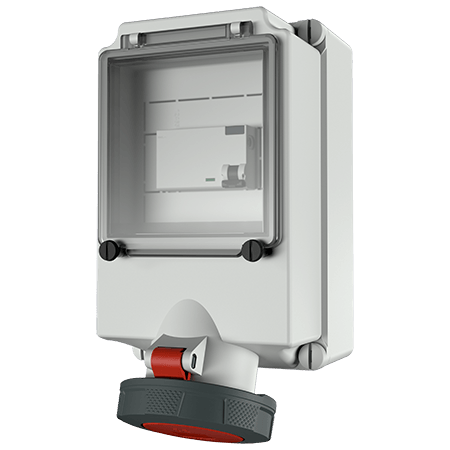

MENNEKES Wall mounted receptacle 7170
MENNEKES Wall mounted receptacle 7170 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 7170

Ampere 63 A
Poles
Voltage
Clock position
  • fused with RCD (0.03 A)
  • other leakage current ratings on request
  • Part no.7170
  • EAN4015394114673
  • Std. Pack. 3
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle 7170

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic
Weight 2462 g
Certifications EAC
CQC

Videos

Wall mounted receptacle 7170

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted receptacle 7170
