MENNEKES worldwide

MENNEKES

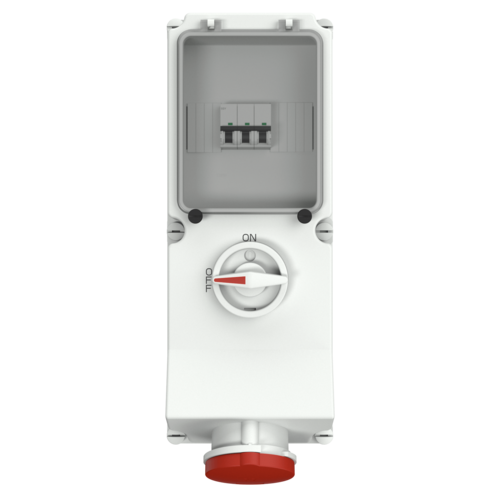

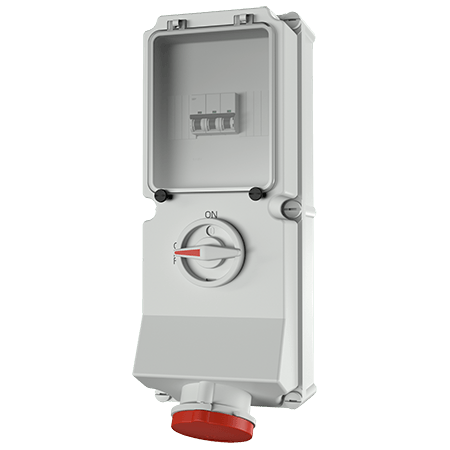

Wall mounted receptacle 7221

Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • circuit breaker, K-characteristics
  • receptacles can be padlocked
  • Part no.7221
  • EAN4015394144342
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 7221

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 4420 g
Declaration of Conformity CN,CQC

Datasheets & Downloads

Wall mounted receptacle 7221
