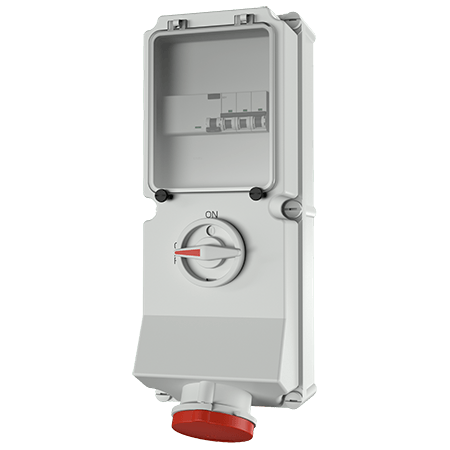

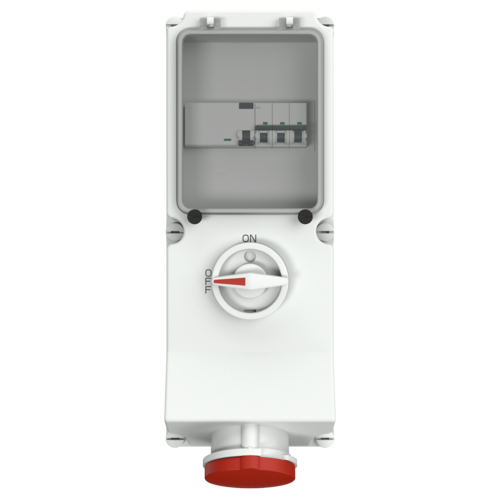

MENNEKES Wall mounted receptacle 7235
MENNEKES Wall mounted receptacle 7235 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 7235

Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • circuit breaker, K-characteristics and RCD (0.03A)
  • other leakage current ratings on request
  • receptacles can be padlocked
  • Part no.7235
  • EAN4015394115854
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7235

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 5069 g
Certifications EAC
CQC

Videos

Wall mounted receptacle 7235

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted receptacle 7235

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
