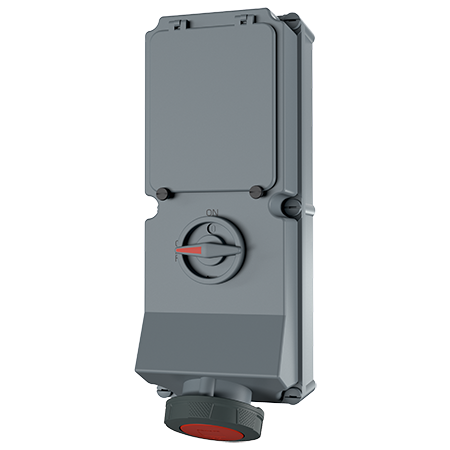

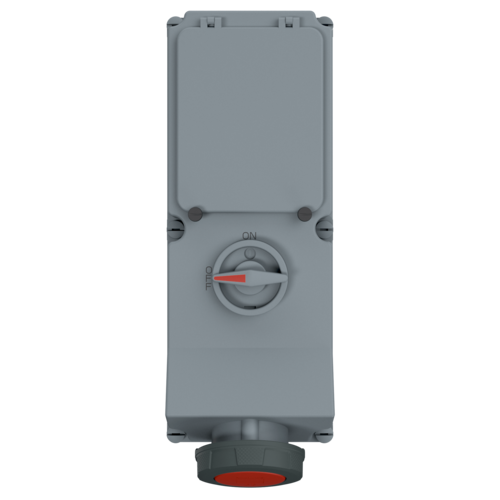

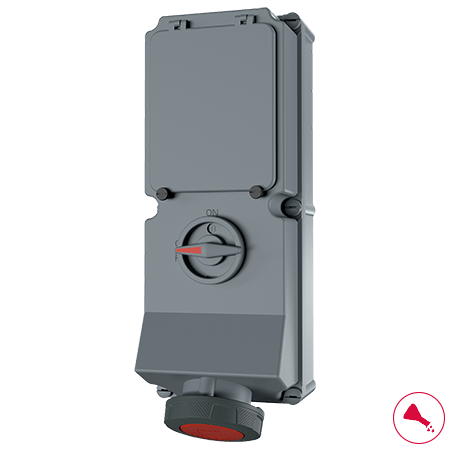

MENNEKES Wall mounted receptacle 7302
MENNEKES Wall mounted receptacle 7302 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 7302

Ampere 63 A
Poles
Voltage
Clock position
  • switched
  • mechanical DUO-interlock
  • 3 pole fuse socket
  • receptacles can be padlocked
  • Part no.7302
  • EAN4015394132998
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7302

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
X-CONTACT
highly heat resistant contact carrier
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 4500 g
Certifications EAC
CQC

Videos

Wall mounted receptacle 7302

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted receptacle 7302

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
