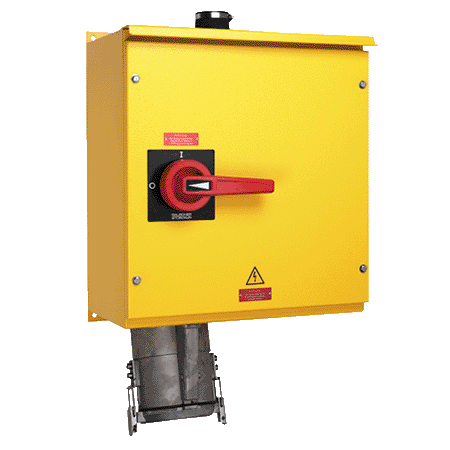

Wall mounted receptacle 75036

Clock position
  • screw terminals
  • switched
  • mechanical interlock
  • cable entry bushing for cables of up to 65 mm at top and blind flange at bottom
  • enclosure made of sheet steel, painted in RAL 1021
  • seawater resistant products are available on request
  • Part no.75036
  • EAN4015394055105
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 75036

Ampere 400 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 55
Weight 39000 g
Declaration of Conformity EAC (Zwangszulassung)
