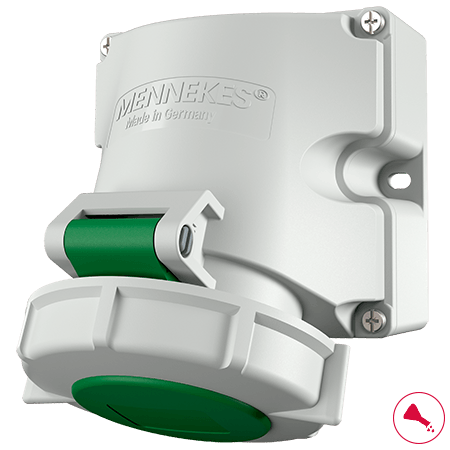

Wall mounted receptacle 9324

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9324
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 9324

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 378 g

Appropriate accessories

Wall mounted receptacle 9324

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
