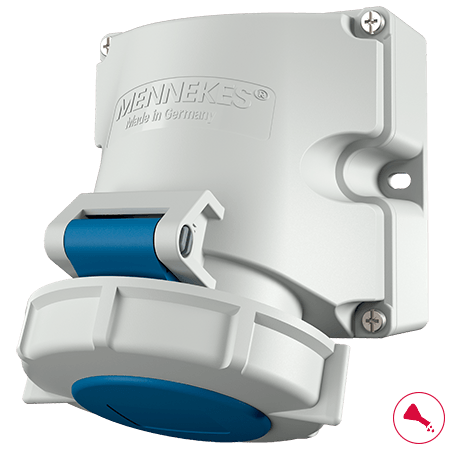

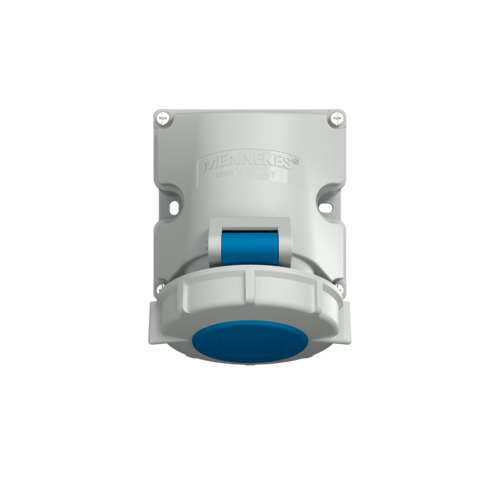

Wall mounted receptacle 9341

Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9341
  • EAN4015394280422
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 9341

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 406 g
Declaration of Conformity CN,CQC

Appropriate accessories

Wall mounted receptacle 9341

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
