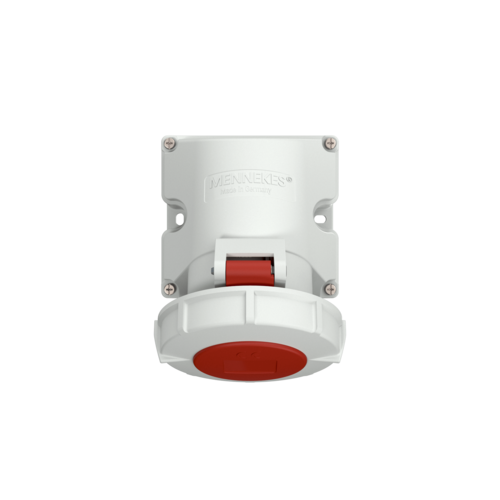

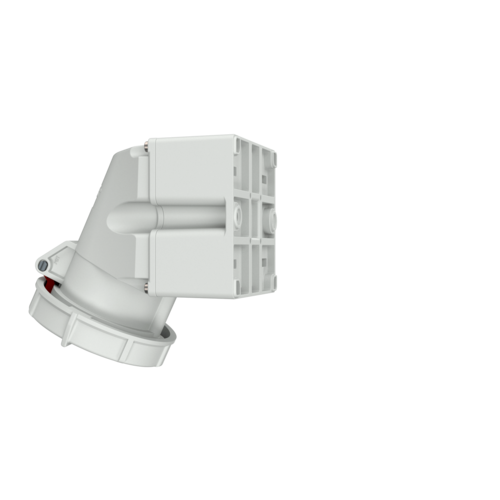

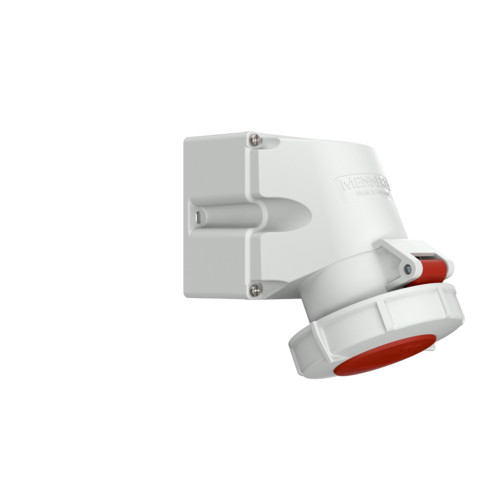

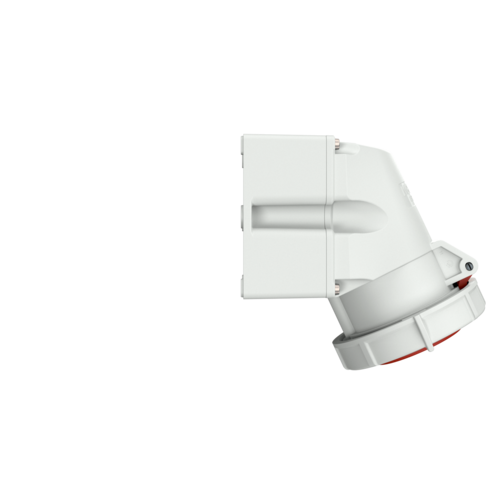

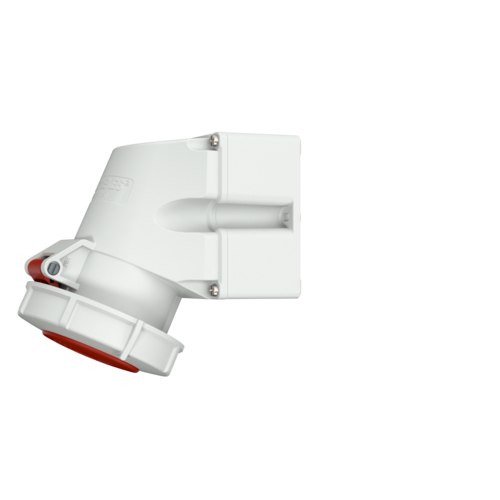

Wall mounted receptacle 9352

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9352
  • EAN4015394280620
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 9352

Ampere 32 A
Poles 3 p
Voltage 400 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 510 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Wall mounted receptacle 9352

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
