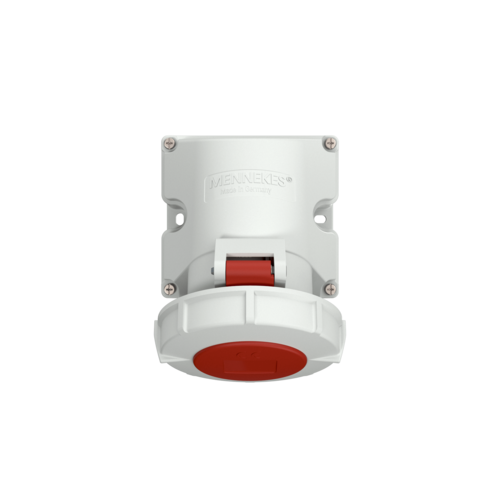

MENNEKES Wall mounted receptacle 9382
MENNEKES Wall mounted receptacle 9382 images3d

Wall mounted receptacle 9382

Poles
Voltage
Clock position
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9382
  • EAN4015394281764
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 9382

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 566 g
Certifications VDE
EAC
CQC

Directives

Wall mounted receptacle 9382

Appropriate products

Wall mounted receptacle 9382 with IP67

MENNEKES Panel mounted receptacle 1551

Panel mounted receptacle

Part no. 1551

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Connector AM-TOP 562

Connector AM-TOP

Part no. 562

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Plug AM-TOP 300

Plug AM-TOP

Part no. 300

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals

Appropriate accessories

Wall mounted receptacle 9382

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
