MENNEKES Wall mounted receptacle 9570
MENNEKES Wall mounted receptacle 9570 images3d

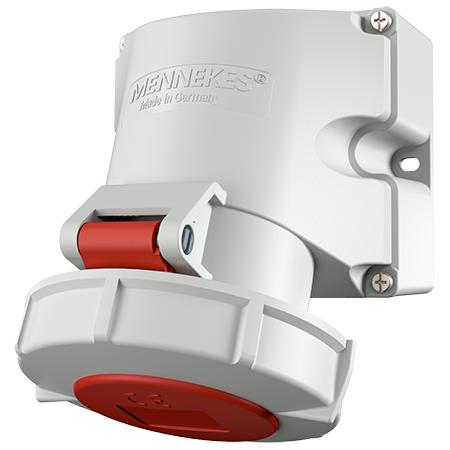

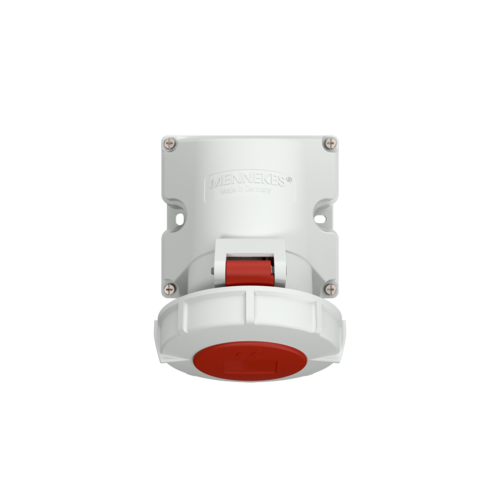

Wall mounted receptacle 9570

Poles
Voltage
Clock position
  • two external fixing points
  • receptacles are designed for adding an auxiliary contact switch
  • enclosure base can be turned 180°
  • Part no.9570
  • EAN4015394280668
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 9570

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 578 g
Certifications VDE
EAC
CQC

Directives
