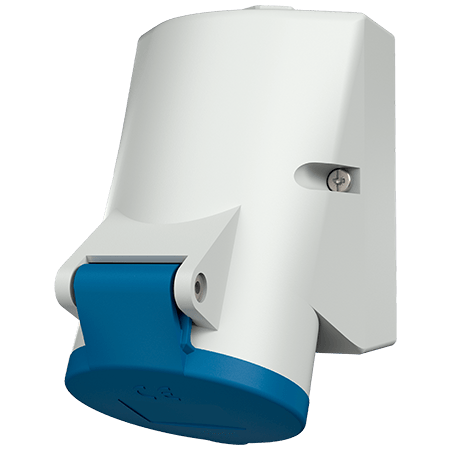

MENNEKES Wall mounted receptacle CEEplus 955
MENNEKES Wall mounted receptacle CEEplus 955 images3d

Wall mounted receptacle CEEplus 955

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with 4 additional contacts
  • internal fastening
  • one cable entry at top (M 20), one blind entry (M 20 can be cut out ) at the bottom
  • for solid supply lines for auxiliary contacts, an additional adapter is required
  • Part no.955
  • EAN4015394206521
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle CEEplus 955

Ampere 16 A
Poles 3 p+a
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 219 g
Certifications EAC

Directives

Wall mounted receptacle CEEplus 955
