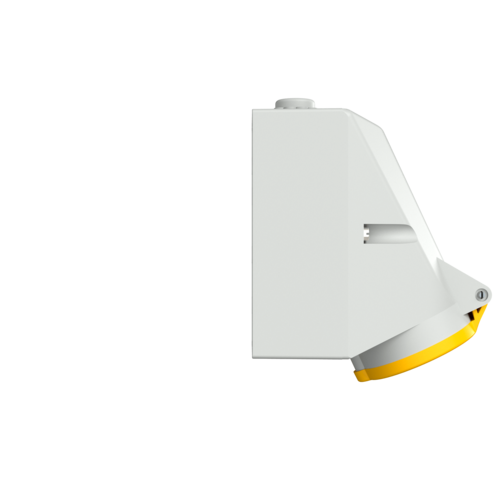

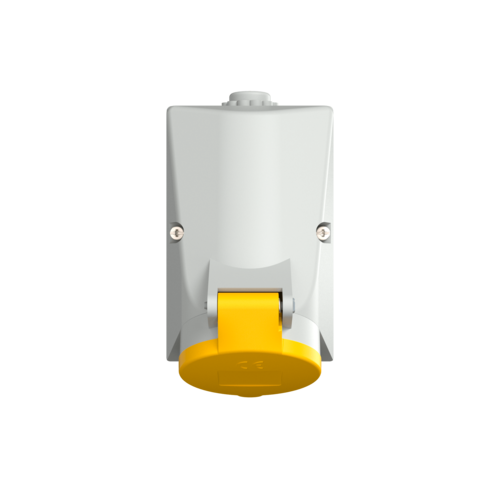

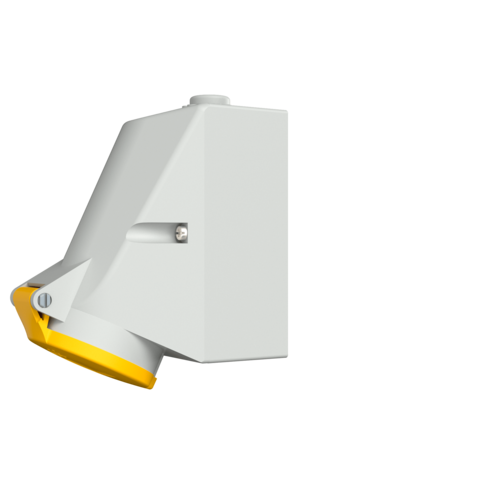

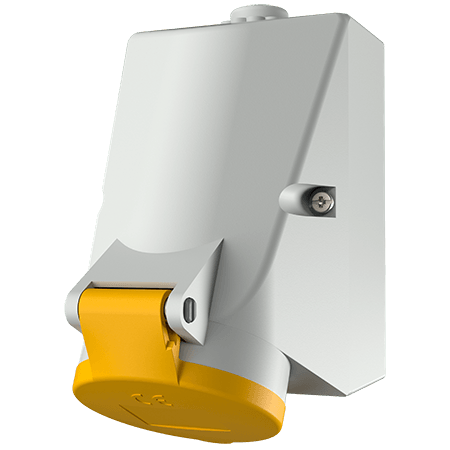

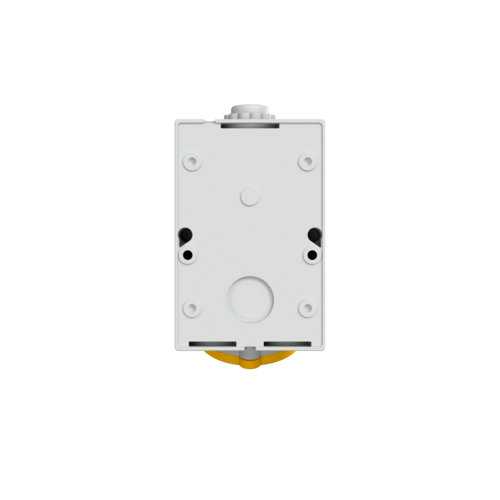

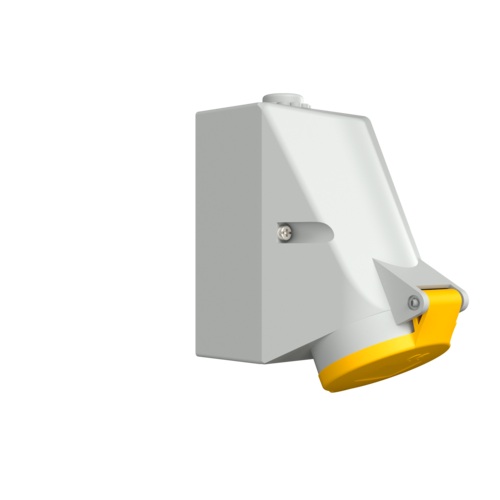

Wall mounted receptacle with TwinCONTACT 1755

The universal CEE receptacle for trade and industry with freely selectable connection direction.

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • internal fixing
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.1755
  • EAN4015394213796
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle with TwinCONTACT 1755

Ampere 16 A
Poles 5 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Weight 282 g
Declaration of Conformity EAC
CQC

Appropriate accessories

Wall mounted receptacle with TwinCONTACT 1755

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
