MENNEKES AirKRAFT® 94569GE images3d

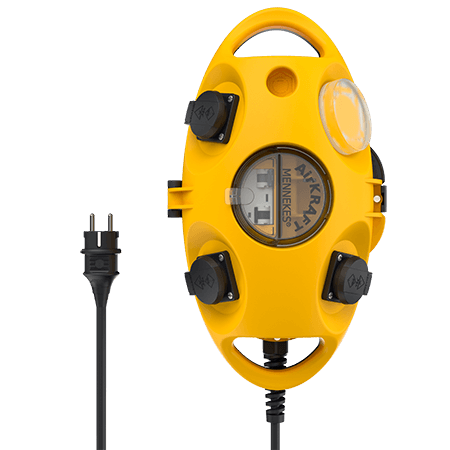

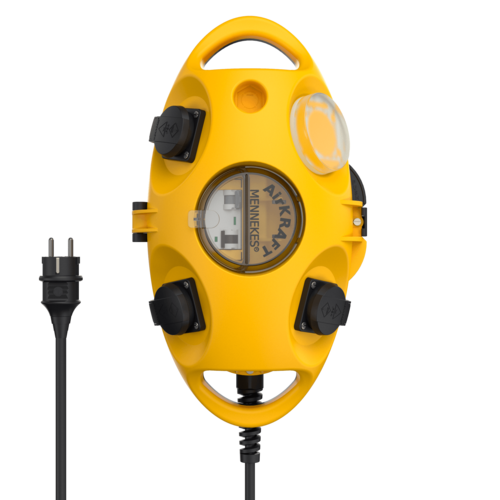

AirKRAFT® 94569GE

  • pre-wired for installation
  • back box in black
  • hinged cover available in red (RO), yellow (GE) or silver (SI)
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.94569GE
  • EAN4015394209324
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AirKRAFT® 94569GE

SCHUKO® 16 A, 230 V 3
Fitted with
  • 1 Micro Lynx light 7W
  • 1 RCD 25 A, 4 p, 0.03 A
  • 1 MCB 16 A, 1 p, B
Pre-fuse max. 16 A
InA 16 A
Connection/feeder cable
  • 3 m H07RN-F3G1.5 with plug SCHUKO® 16 A, 230 V
Protection type IP20
Enclosure material Plastic
Weight 2540 g
Storage receptacle combination D

Frequently asked questions about the product

Are there schematic diagrams for 3KRAFT® and AirKRAFT® products?

Product information sheets with dimensional drawings of 3KRAFT® and AirKRAFT® products can be found on the corresponding product detail pages. There are no schematic diagrams for these product groups.
