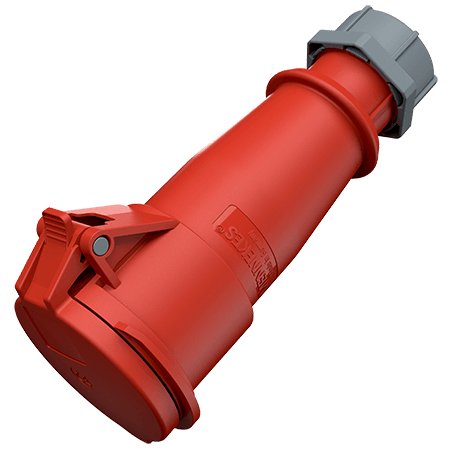

Connector AM-TOP® 21039

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21039
  • EAN4015394039853
  • Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 21039

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 44
Weight 389 g
Declaration of Conformity DE,VDE
CN,CQC
