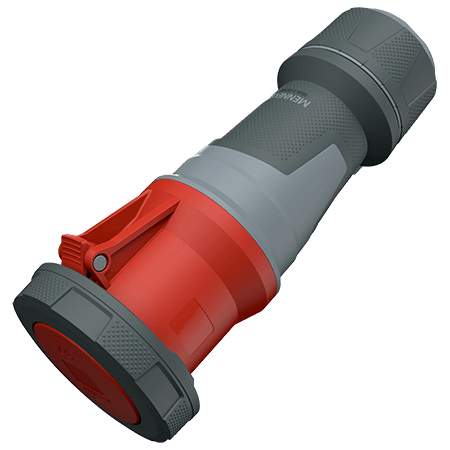

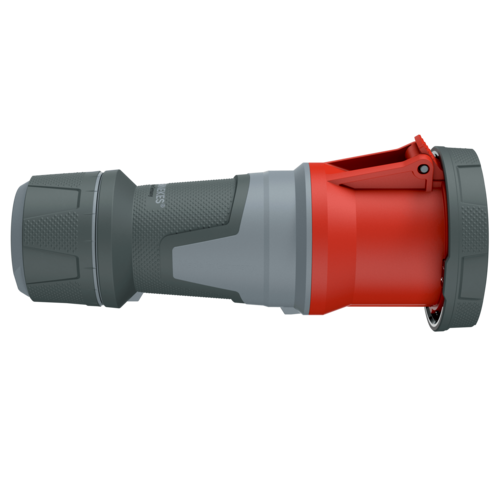

Connector PowerTOP Xtra 14233
Voltage
Clock position
- screw terminals
- with rubberised grip area
- frame terminals
- X-CONTACT
- highly heat resistant contact carrier
- nickel plated contacts
- cable gland and sealing
- strain relief and protection against kinking
- enclosure with thread lock
- two safety slides
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Connector PowerTOP Xtra 14233
| Ampere | 125 A |
|---|---|
| Poles | 4 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts X-CONTACT |
| Protection type | IP67 |
| Weight | 1554 g |
| Declaration of Conformity |
VDE EAC |
