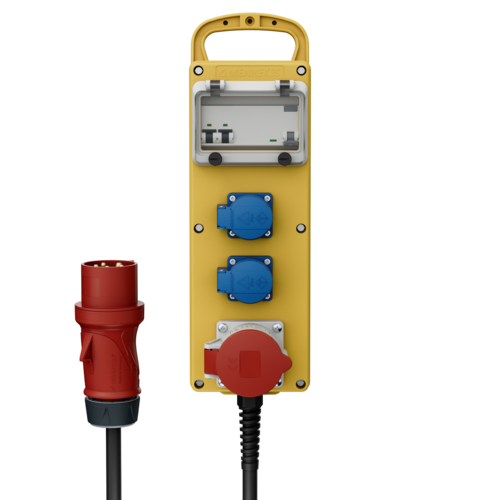

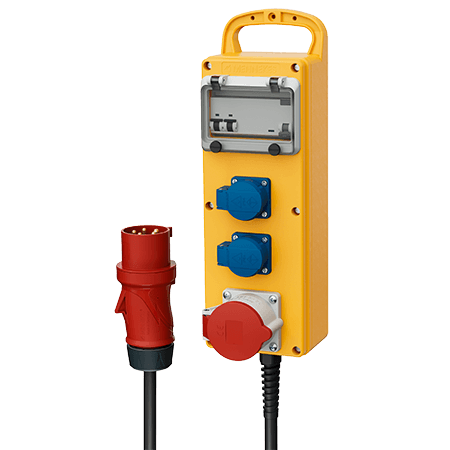

MENNEKES EverGUM receptacle combination 70030
MENNEKES EverGUM receptacle combination 70030 images3d

EverGUM receptacle combination 70030

CEE 32 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70030
  • EAN4015394103301
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM receptacle combination 70030

CEE 32 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 32 A
InA 32 A
RDF 0.75
Connection/feeder cable
  • 2 m H07RN-F5G4 with CEE-plug 32 A, 5 p, 400 V
Protection type IP44
Enclosure material Solid rubber
Weight 4291 g
Height 445 mm
Width 135 mm
Certifications EAC
Storage receptacle combination B

Directives

EverGUM receptacle combination 70030

Frequently asked questions about the product

Are there IP5x EverGUM® products?

The standard IP protection classes for the EverGUM® product series are IP 44 and IP 67. Another protection class can be considered on a case-by-case basis.

Is there a stand available for the mobile EverGUM®?

Our EverGUM® combination units are suitable for free-standing floor applications. A stand is therefore not required.
