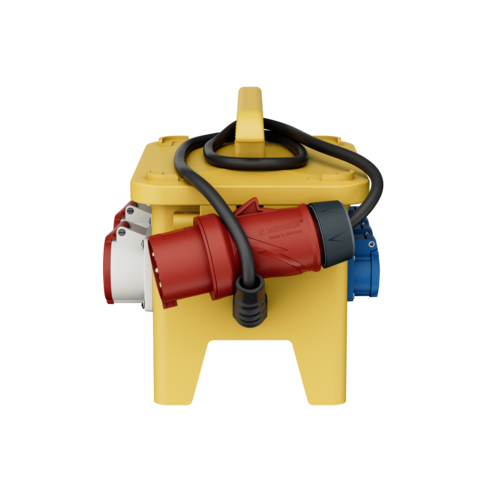

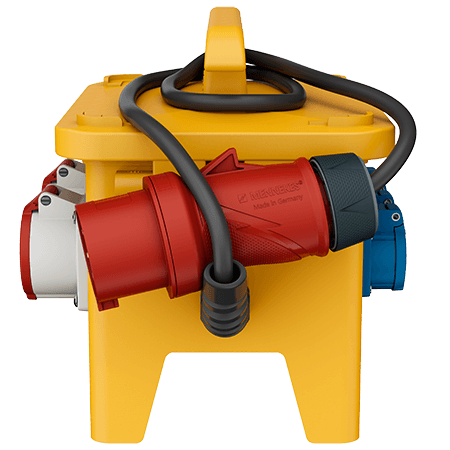

EverGUM receptacle combination 70433

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70433
  • EAN4015394142652
  • Std. Pack. 1 Qty.

Technical specifications

EverGUM receptacle combination 70433

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 4
Fusing
  • 2 Neozed D 01, 3 p
  • 2 Neozed D 01, 1 p
Pre-fuse max. 32 A
InA 32 A
RDF 1
Connection/feeder cable
  • 2 m H07RN-F5G4 with CEE-plug 32 A, 5 p, 400 V
Protection type IP 44
Enclosure material Solid rubber
Weight 7760 g
Length 306 mm
Height 288 mm
Width 230 mm
Declaration of Conformity EAC (Zwangszulassung)
Storage receptacle combination A
