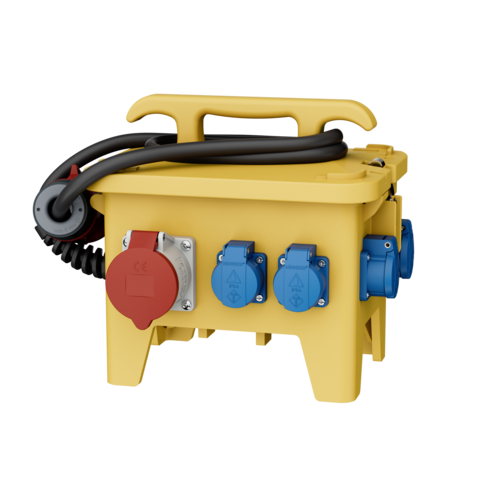

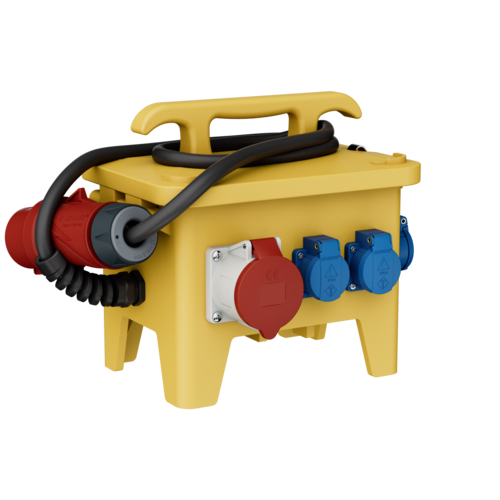

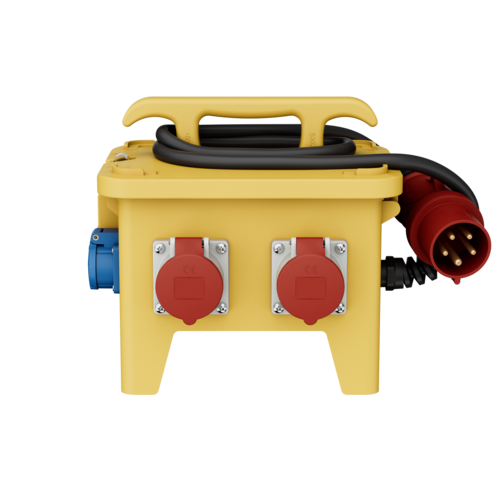

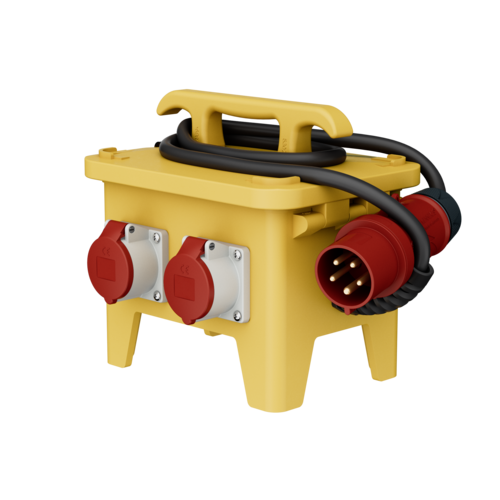

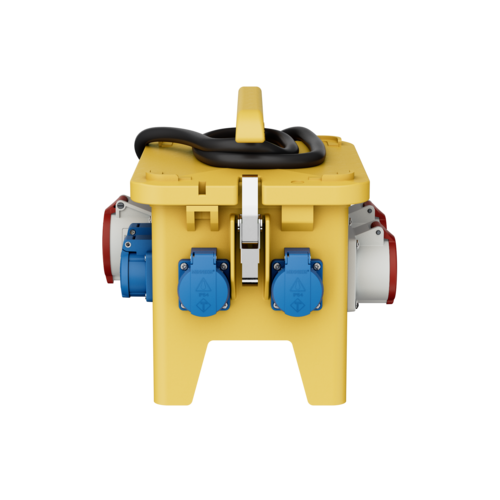

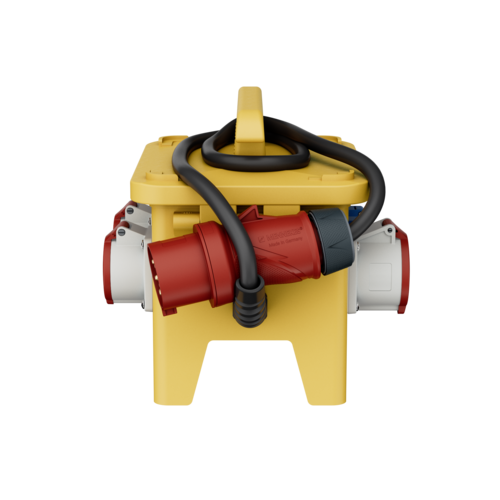

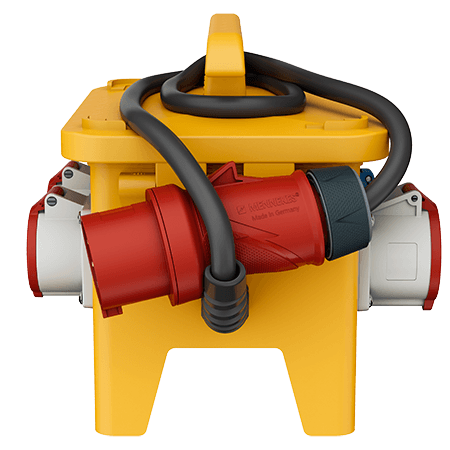

EverGUM receptacle combination 70734
|CEE 32 A, 5 p, 400 V||1|
|CEE 16 A, 5 p, 400 V||2|
|SCHUKO® 16 A, 230 V||4|
|Pre-fuse max.||32 A|
|Protection type||IP 44|
|Enclosure material||Solid rubber|
|Declaration of Conformity||EAC|
|Storage receptacle combination||B|
The standard IP protection classes for the EverGUM® product series are IP 44 and IP 67. Another protection class can be considered on a case-by-case basis.
We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.
Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.
Our EverGUM® combination units are suitable for free-standing floor applications. A stand is therefore not required.
Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
