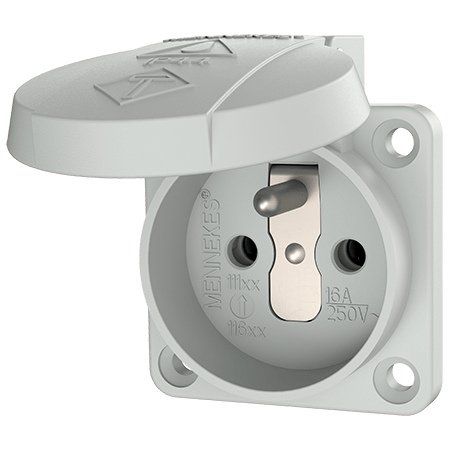

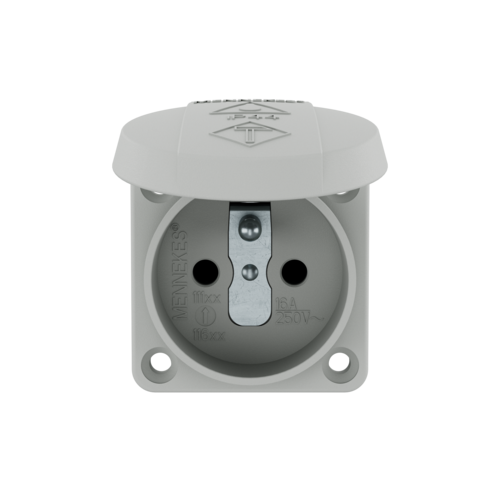

MENNEKES Grounding-type panel mounted receptacle 11110
MENNEKES Grounding-type panel mounted receptacle 11110 images3d

Grounding-type panel mounted receptacle 11110

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • with hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 - 2.5 mm²
  • other colours on request
  • Part no.11110
  • EAN4015394184874
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type panel mounted receptacle 11110

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP44
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 40 g
Certifications VDE
EAC

Directives

Grounding-type panel mounted receptacle 11110

Appropriate accessories

Grounding-type panel mounted receptacle 11110

MENNEKES Base for wall mounted receptacle 10714

Base for wall mounted receptacle

Part no. 10714

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

MENNEKES Fixing frame 19266106

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted receptacles

MENNEKES Blanking flange 41418

Blanking flange

Part no. 41418

to close unused apertures, grey
